The i.MX 6 series of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications. The i.MX 6SoloLite processor features:

Enhanced capabilities of high-tier portable applications by fulfilling MIPS needs of operations systems and games
Multilevel memory system
Smart speed technology that enables the designer to deliver a feature-rich product, requiring levels of power far lower than industry expectations
Dynamic voltage and frequency scaling
Powerful graphics acceleration
Interface flexibility
Integrated power management throughout the device
Advanced hardware-enabled security

The i.MX 6SoloLite is supported by companion NXP power management ICs (PMIC) MMPF0100, MMPF0200, PF3000 and PF3001.

i.MX 6 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

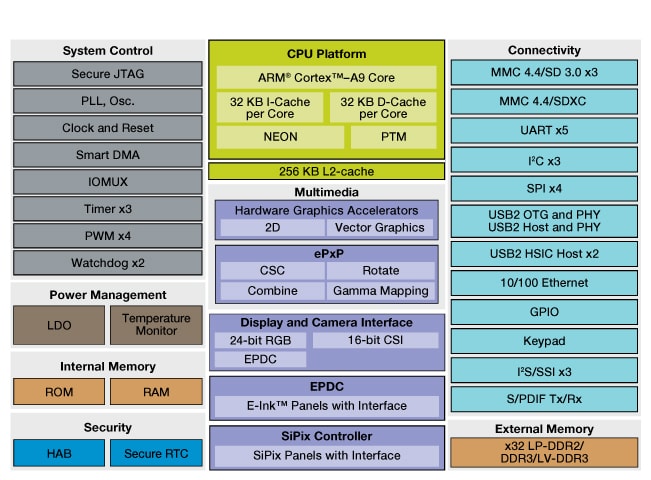

Block Diagram

i.MX 6SoloLite Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

1x Arm® Cortex®-A9 up to 1 GHz
256 KB L2 cache
32 KB instruction and data caches
NEON SIMD media accelerator

Multimedia

GPU 2D(Vector Graphics)
- Vivante GC355
- 300Mpxl/s, OpenVG 1.1
GPU 2D(Composition)
- 2D BLIT Engine
- Vivante GC320
Video Decode
- SW only
Video Encode
- SW only
Camera Interface
- 16-bit parallel

Memory

DDR
- 16/32 bit LP-DDR2
- 16/32 bit DDR3/LV-DDR3

Connectivity

3x USB 2.0
- 1x HS OTG + PHY
- 1x Host + PHY
- 1x Host USB HSIC
Ethernet
- 10/100 Mbps
Expansion Ports
- 3x SD/MMC 4.4, 1x SDXC
- 4x SPI, 5x UART, 3x I²C

Display

Beyond WXGA (1366x786)

Advanced Power Management

PMU integration
NXP PF100 power management unit

Security

Advanced security supporting:

High Assurance Boot
Cryptographic cipher engines
Random number generator
Tamper detection

Package and Temperature

13 x 13 mm, 0.5 mm BGA
Consumer (0C to +95C), up to 1 GHz
Extended Temperature (-40C to +105C), up to 1 GHz

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

3 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
i.MX 6SoloLite BSDL File

BSDLRev 1Nov 9, 2012 00:00:0055.3 KBIMX6_SL_BSDL

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
i.MX 6SoloLite IBIS Model File

ZIPRev 1Jan 11, 2017 00:00:0025706 KBIMX6_SL_IBIS

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Design files, including hardware schematics, Gerbers, and OrCAD files.

ZIPRev 1Nov 12, 2012 00:00:006.2 MBiMX6SL_EVK_DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

2 hardware offerings

Evaluation and Development Boards
i.MX 6SoloLite Evaluation KitFeatured
Active

IMX6SLEVK
Evaluation and Development Boards
SABRE Board for Smart Devices Based on the i.MX 6QuadPlus Applications Processors
Active

RD-IMX6QP-SABRE

1-5 of 17 hardware offerings

Embedded Board Solutions
phyBOARD-Nunki i.MX 6

phyBOARD-Nunki is designed especially for image processing applications-a further development of our proven phyBOARD-Mira. It makes optimal use of the two Image Processin...

By PHYTEC Platinum Partner
Embedded Board Solutions
ConnectCore 6N

ConnectCore 6 is an i.MX6 SMT multi-chip module. Features include integrated Wi-Fi, Bluetooth, PMIC and Kinetis Microcontroller. 400 pin LGA for reliable connection an...

By Digi International Gold Partner
Embedded Board Solutions
LEC-i.MX6

SMARC ( Smart Mobility Architecture ) computer on module based on ultra-low power i.MX6 family.

By ADLINK Technology, Inc. Gold Partner
Embedded Board Solutions
MicroGEA MX6ULL

The MicroGEA Module is the smallest module on the market based on i.MX 6ULL; everything is included in a very amazing size of 25 x 25 mm , with a height of 3.5 mm.

By Engicam Gold Partner
Embedded Board Solutions

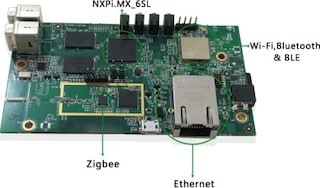

i.MX6 SoloLite Multi-Purpose IOT Gateway
