Getting Started with the BATT-14CEMULATOR
Contents of this document
-
Get Started
-
Get to Know the Hardware
-
Configure Hardware
Sign in to save your progress. Don't have an account? Create one.
Purchase your BATT-14CEMULATOR: 14-cell Battery Pack to Supply MC33771C BCC EVBs
1. Get Started
The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal, and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost, and improved performance in powering state-of-the-art systems.
This page will guide you through the process of setting up and using the BATT-14CEMULATOR board.
1.1 Kit Contents/Packing List
The BATT-14CEMULATOR contents include:
- BATT-14CEMULATOR, 14-cell slider battery pack emulator
- Quick Start Guide
1.2 Additional Hardware
In addition to the kit contents, the following hardware is necessary or beneficial when working with this kit.
- Power supply 12 VDC with current capability 1.5 A
2. Get to Know the Hardware
2.1 Board Features
- 14 cell emulator potentiometers
- Each slider can modify the cell voltage between 1.25 V and 4.9 V
- Current capability of the cell output voltage is 110 mA
- Up to three evaluation boards can be connected in parallel
- One temperature sensor emulator potentiometer
- Temperature sensor output voltage can vary from 0 V to +4.95 V
- Two output terminals to allow stack-up of several emulators

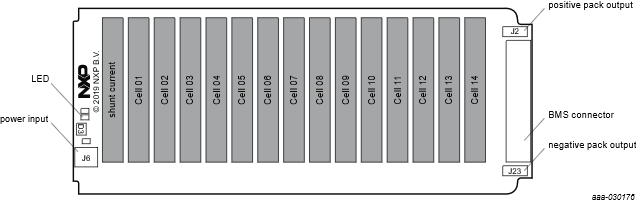

2.2 Board Description
The BATT-14CEMULATOR board can emulate a multi-cell battery pack that can be easily hooked-up to the evaluation boards for MC33771C battery cell controllers (BCC):
- RD33771CDSTEVB
- FRDM33771CSPEVB
3. Configure Hardware
3.1 Configure the Hardware
To configure the hardware, complete the following procedure:
- Connect 12 V DC power supply with 1.5 A current capability to the board via
J6, a 3.5 mm diameter jack connector. The center pin is to be connected to the positive voltage and the ring terminal to the ground - Connect the MC33771C EVB board to the battery emulator using a 26-pin connector that is included in the MC33771C EVB pack
- Move the potentiometers to change the voltage on the 14 cells and on the temperature sensor emulators
3.2 Ready to Use
Start embedded application development.
Design Resources
Board Information
Additional References
Product summary page
The product summary page for MC33771C is at MC33771C.
Tool summary page
The tool summary page for BATT-14CEMULATOR board is at BATT-14CEMULATOR.
The page provides overview information, technical and functional specifications, ordering information, documentation, and software. The Get Started provides quick-reference information applicable to using the BATT-14CEMULATOR board, including the downloadable assets.
