MC9S08JE Low-Power USB Tower System Module

TWR-S08JE128 Preproduction

Roll over image to zoom in

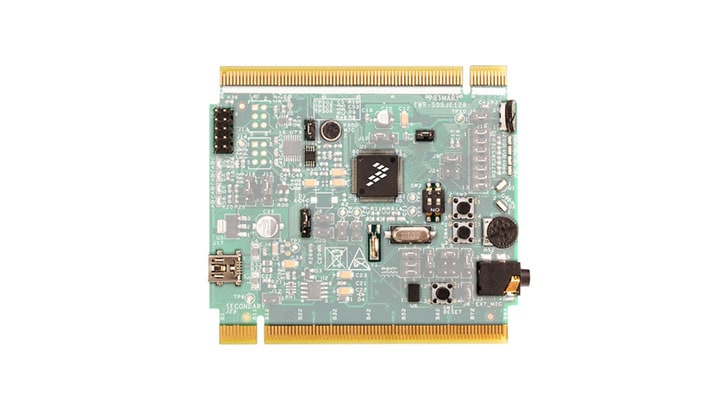

The TWR-S08JE128 module is a development board for the MC9S08JE low-power USB Flexis® 8-bit family of MCUs.

The TWR-S08JE128 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Supported Devices

Processors and Microcontrollers

ColdFire® V1 Processors

  • MCF51JE: Flexis™ 32-Bit ColdFire®. V1 Microcontrollers

8-Bit S08 MCUs

  • S08JE: 8-bit Flexis USB JE MCUs

Features

Connectivity

  • Supports external communications interfaces RS-232, RS485, CAN, USB

Power Management

  • Includes power regulation circuitry with standardized bus Low power

Debug

  • Integrated open source BDM debugging tool Two 80-pin connectors on the outside to support debugging or expansion to LCD module

Size

  • Small form factor (59 mm x 90 mm)
  • The TWR-S08JE128 board contains a Flexis® MC9S08JE128, an Energy-Efficient Product Solution by NXP®
