OM-SE052ARD: Development Board for EdgeLock® SE052F Secure Element

OM-SE052ARD

Roll over image to zoom in

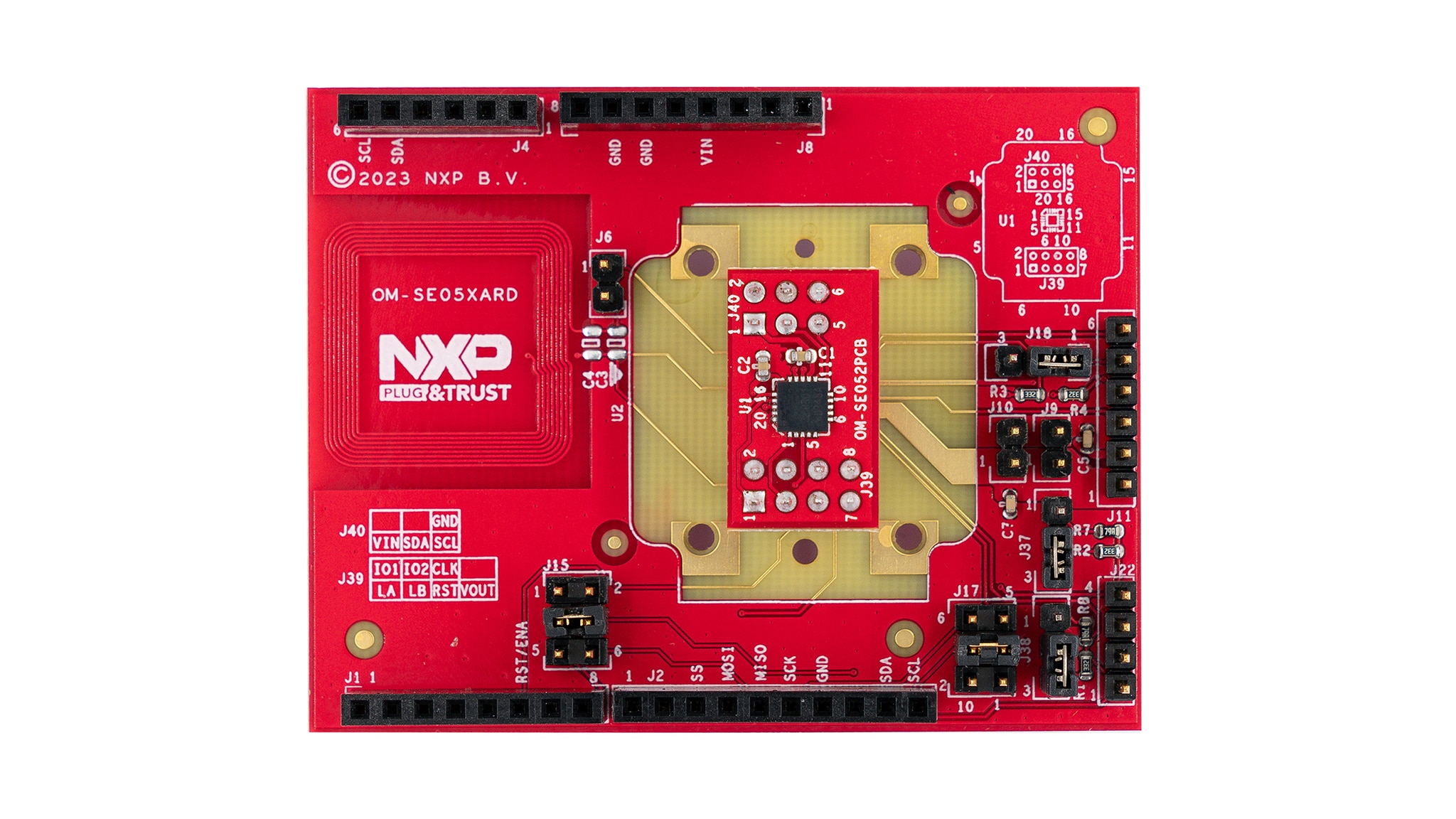

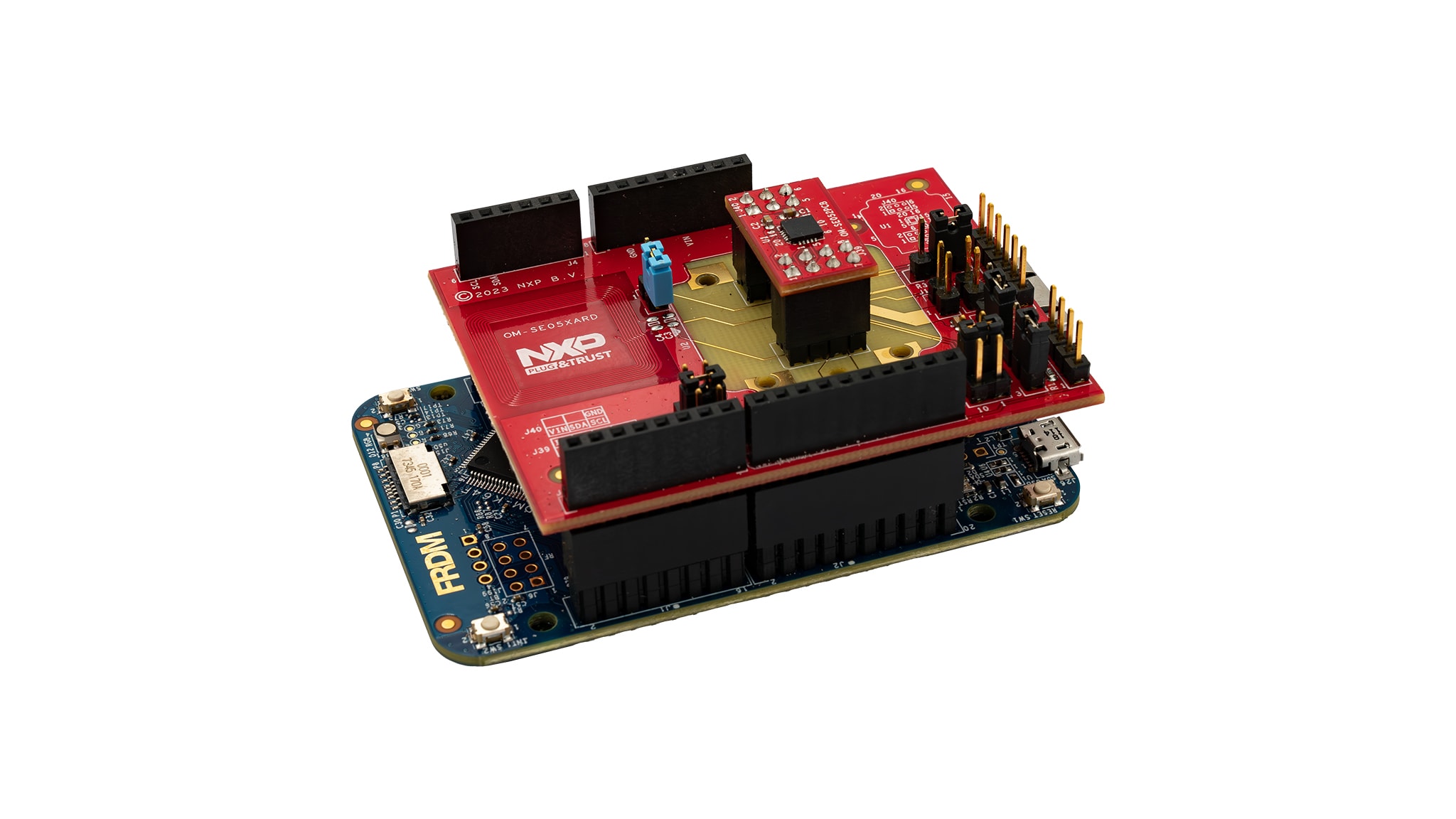

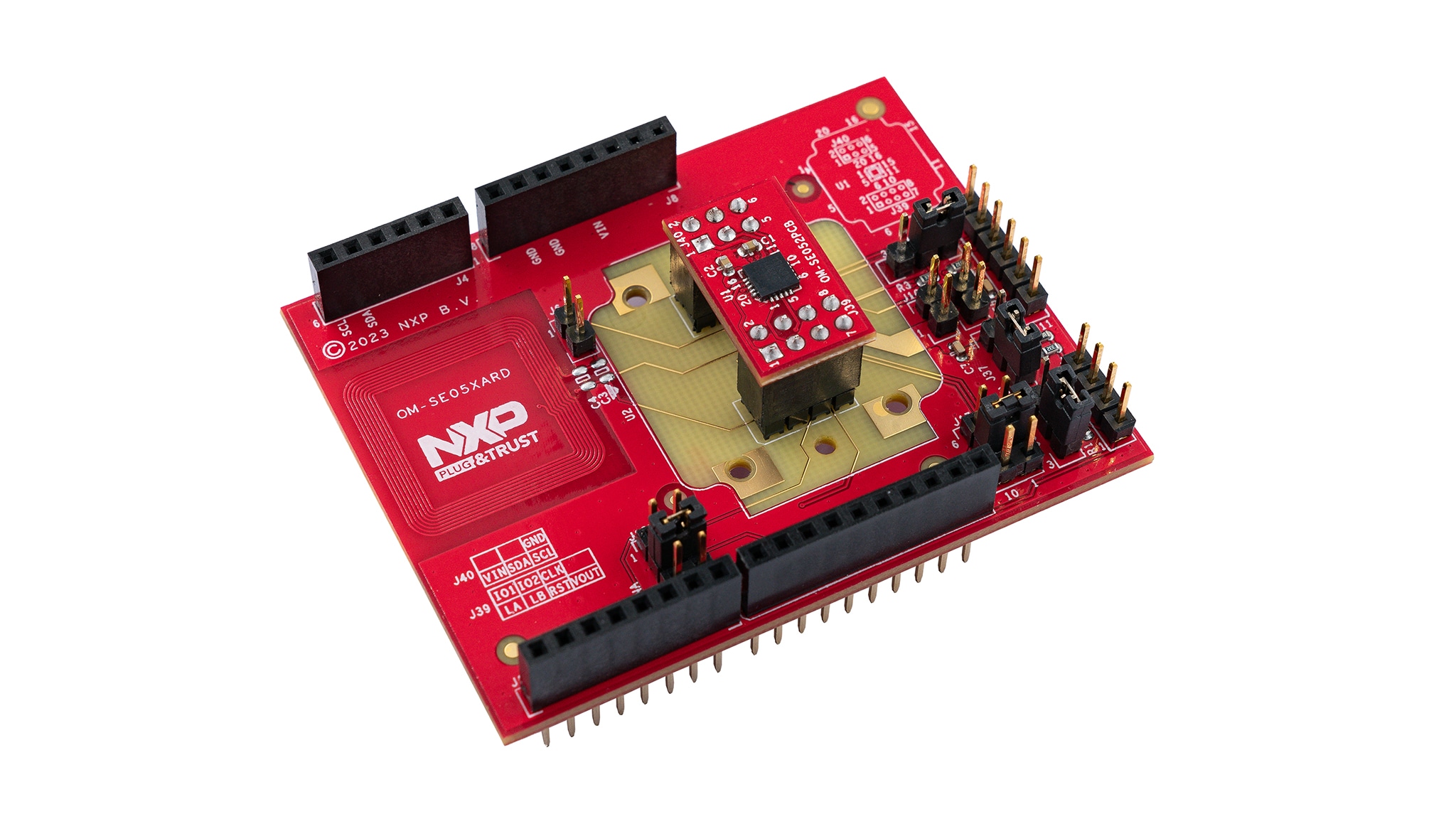

The OM-SE052ARD is a flexible and easy-to-use development kit for easy integration of EdgeLock SE052F Secure Element — the first hardware Secure Element certified to FIPS 140-3 Level 3. It includes a Mini PCB with Raspberry Pi compatible GPIO pinout. The development kit can be used in various ways, for example, via the Arduino interface compatible to any board featuring an Arduino compatible header, including many i.MX, LPC, MCX and Kinetis® boards. The development kit contains a Mini PCB with a Raspberry Pi compatible GPIO header, so it plugs directly to the Raspberry Pi and many i.MX boards. The kit allows the evaluation of the EdgeLock SE052F Secure Element features and simplifies the development of secure industrial applications.

Product Details

Features

Advanced Security

  • FIPS 140-3 certified platform with security level 3 for OS and applet and security level 4 for the physical security of the hardware
  • Common Criteria EAL 6+ certified up to OS level as a safe environment to run pre-installed NXP IoT applets, supporting full encrypted communications and secured lifecycle management
  • Secured flash user memory up to 100kB
  • Secure binding with host MCU/MPU and bus encryption
  • Secure credential injection with end-to-end encryption
  • Advanced access control policies to credentials and data stored on chip
  • Suitable for industrial IoT use cases

Cryptographic Algorithms

  • ECC cryptographic support of mainstream ECC curves, including NIST (up to 521 bits key length) and Brainpool
  • RSA up to 4096Bits
  • AES encryption and decryption
  • AES modes: CBC, CTR, ECB, CCM, GCM
  • HMAC, CMAC, GMAC, SHA-1, SHA-224/256/384/512 operations
  • HKDF, PRF (TLS-PSK)
  • TRNG compliant to NIST SP800-90B
  • DRBG compliant to NIST SP800-90A
  • Support of main TPM functionalities

Communication

  • Contactless interface for late-stage parameter configuration of unpowered devices
  • I2C target (up to high-speed mode, 3.4 Mbit/s), I2C controller (fast-mode, 400 kbit/s)

Package

  • Small HQFN20 package (4 mm x 4 mm x 0.85 mm)

Temperature

  • Extended temperature range for industrial applications (-40 to +105 °C)

Buy Options

OM-SE052ARD-Image

Click to expand

  • OM-SE052ARD
    Active

  • OM-SE052ARD: Development Board for EdgeLock® SE052F Secure Element.

  • EdgeLock SE052F Arduino Compatible Development Kit includes:

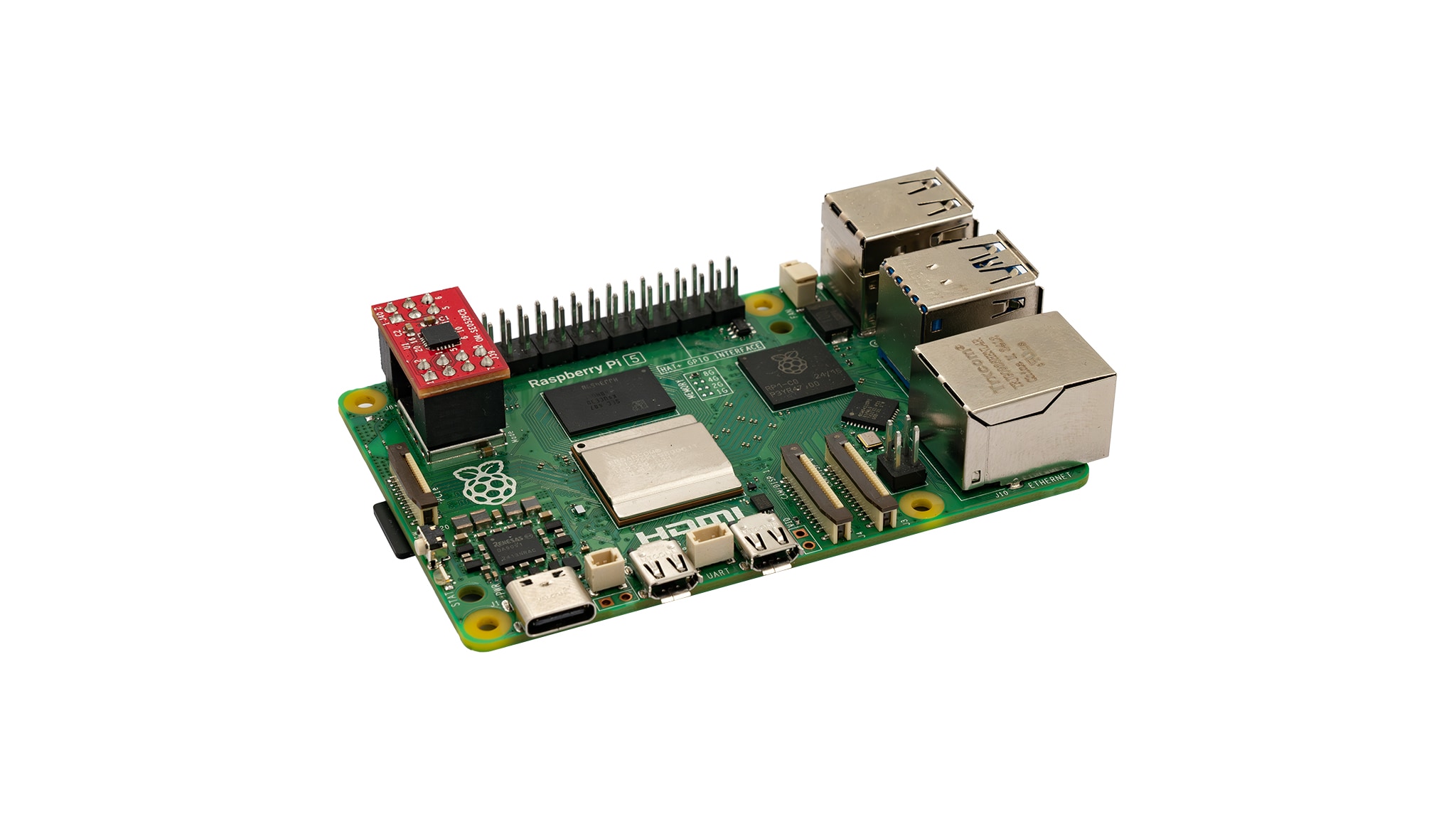

    • Mini PCB with Raspberry Pi compatible GPIO pinout
  • $60.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 64
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
OM-SE050RPI-Image

Click to expand

  • OM-SE050RPI
    Active

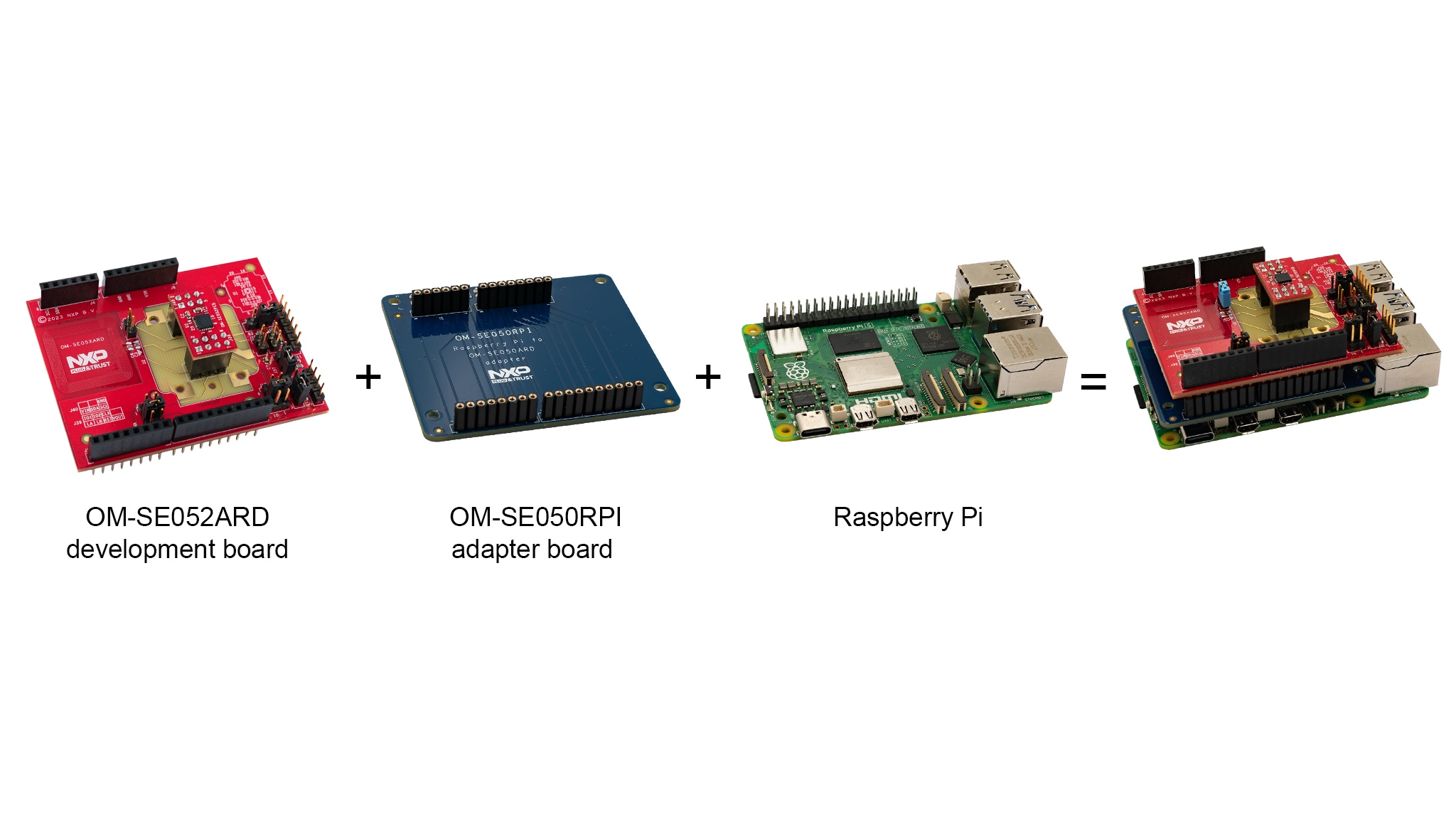

  • Arduino to Raspberry Pi Adapter Board.

  • $40.48 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
