Ultra low-cost development tool for Kinetis MCUs

KWIKSTIK-K40 Active

Roll over image to zoom in

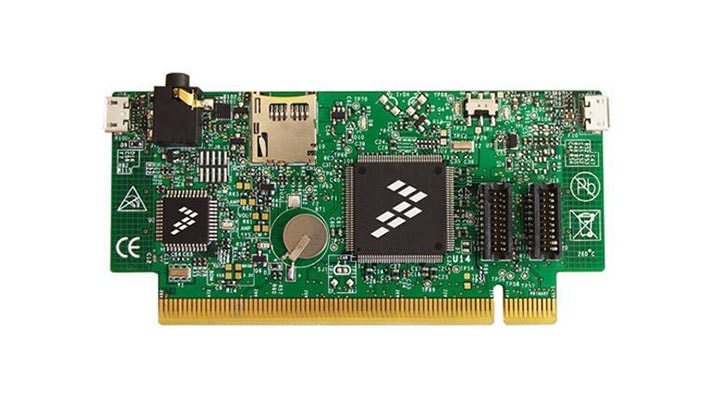

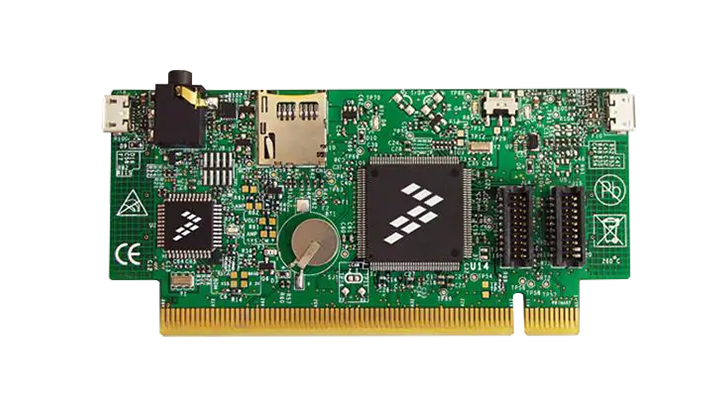

An ultra-low-cost, all-in-one development tool for evaluating, developing and debugging Kinetis® MCUs, the KWIKSTIK-K40 features the K40X256VLQ100 (144LQFP) MCU with USB, touch-sensing and segment LCD functionality.

  • It comes pre-flashed with demo software to exercise a small portion of the capabilities of the Kinetis K40X256 device and the KwikStik hardware
  • The on-board Segger™ J-Link™ debug interface allows you to evaluate the features of the on-board K40 MCU or to develop, debug and program your own target hardware based on any Kinetis MCU
  • The KWIKSTIK-K40 can be combined and used with several peripheral modules in the Tower® System; it can also be operated as a standalone debug tool

Product Details

Supported Devices

Processors and Microcontrollers

K1x Mainstream

  • K10_100: Kinetis® K10-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_120: Kinetis® K10-120 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_50: Kinetis K10-50 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_72: Kinetis® K10-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K20_100: Kinetis® K20-100 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K20_120: Kinetis® K20-120 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K20_50: Kinetis® K20-50 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K20_72: Kinetis® K20-72 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K3x Segment LCD

  • K30_100: Kinetis® K30-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K30_72: Kinetis K30-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K4x USB and Segment LCD

  • K40_100: Kinetis® K40-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K40_72: Kinetis® K40-72 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core

K5x Measurement

  • K50_100: Kinetis® K50-100 MHz, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K50_72: Kinetis® K50-72 MHz, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K6x Ethernet

  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K60_120: Kinetis® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core

K7x Graphic LCD

  • K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core

Features

  • K40X256 in 144 LQFP (256 kB flash, 256 kB FlexMemory, ultra-low-power, precision mixed-signal)
  • LCD display with 306 segments
  • 3.5 mm audio output jack and two micro USB connectors
  • Omni-directional microphone and a buzzer
  • On-board J-Link USB programmer
  • Infrared communications
  • Micro SD card slot
  • Capacitive touch-sensing interface
  • General-purpose Tower® plug-in (TWRPI) socket
  • Manganese lithium rechargeable battery

Buy Options

KWIKSTIK-K40-Image

Click to expand

  • KWIKSTIK-K40
    Active

  • Kwikstick Evaluation B.

    • KwikStik board with a K40X256VLQ100 (144LQFP) 32-bit MCU
    • Flexible plastic enclosure
    • Necessary cables
    • DVD with software installers and documentation
    • Quick Start Guide
  • For a quantity of 1
Order from distributors
