Demonstration Board for MC9RS08KA8

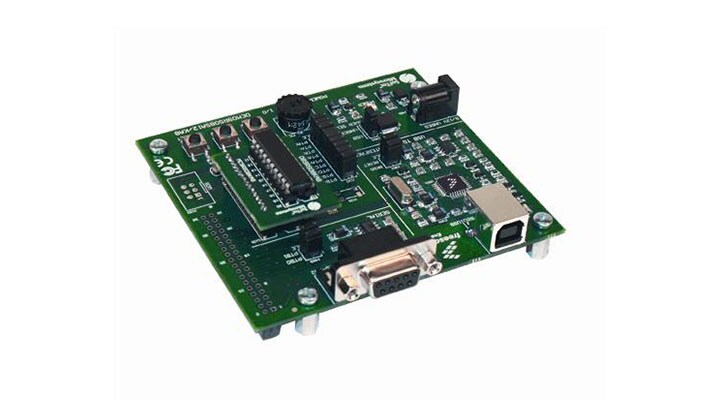

The DEMO9RS08KA8 Demonstration board has been designed for the evaluation, Demonstration and the debugging of the NXP® RS08KA8 microcontroller.
DEMO9RS08KA8/4 board's built-in circuitry and USB programmer interface included reduces hardware interface development time and allows faster code evaluation.
Product Details
Supported Devices
Processors and Microcontrollers
8-bit Legacy MCUs
- RS08KA: 8-bit General Purpose Ultra-Low-End Market KA MCUs
Features
Microcontroller
- MC9RS08KA8 microcontroller (already programmed with a demo application)
Connectivity
- A built-in USB-to-BDM
- An RS-232 transceiver
Power Management
- 12 VDC input connector
- USB connector
Power Supply
User Components
- 3 Push Switches; 2 User, 1 Reset
- 3 LED Indicators; 2 User, 1 VDD
- 1 Potentiometer
- 1 Photocell; Jumper Selector
Interfaces
- A provision for a low-frequency crystal
Documentation
Quick reference to our documentation types.
2 documents
