NFC Cockpit Configuration Tool for NFC ICs

NFC-COCKPIT Active

Roll over image to zoom in

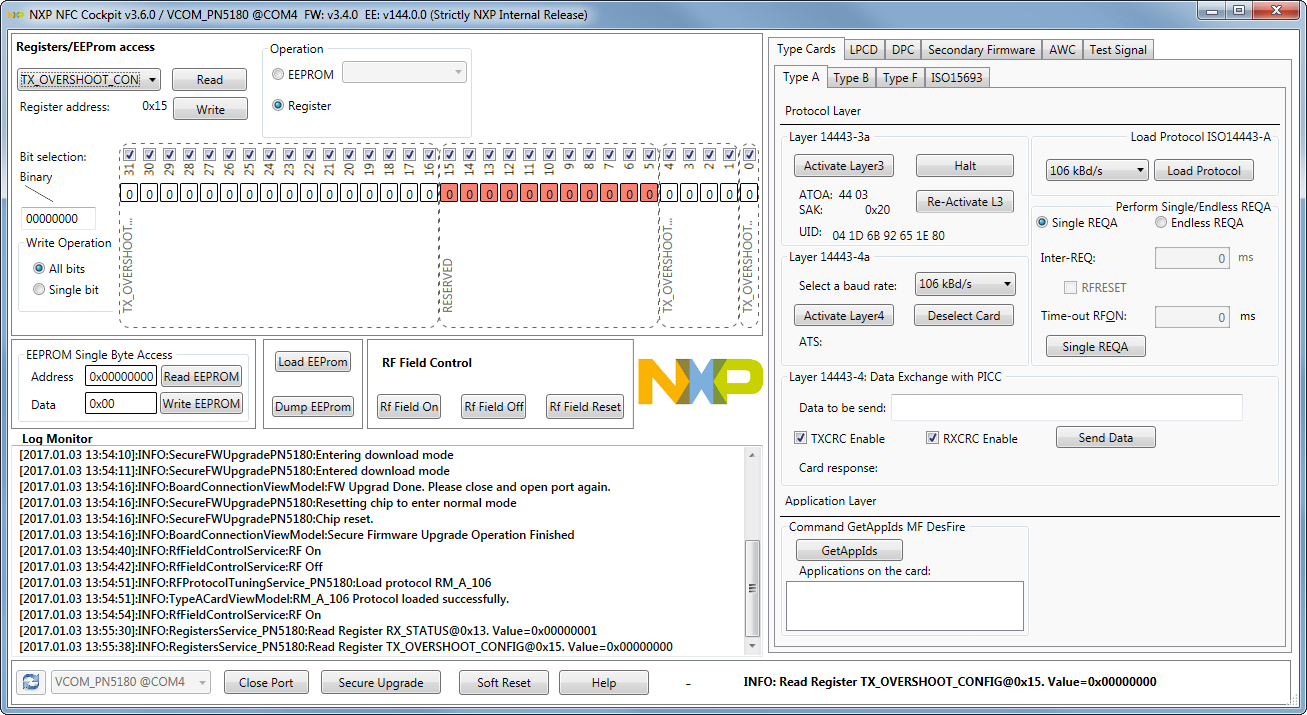

NFC Cockpit is an intuitive graphical user interface that lets you configure and adapt IC settings without writing a single line of software code.

NFC Cockpit supports CLRC663 plus family, PN5180, PN5190, PN7220, PN7462 family and PN7642, and can be used with NXP® development boards and all systems implementing a standard V-COM interface.

Features

  • Direct Register/EEPROM read/write access
  • Backup of EEPROM settings
  • RF Field Control
  • Card operation (Type A, Type B, Type F, ISO15693)
  • LPCD configuration

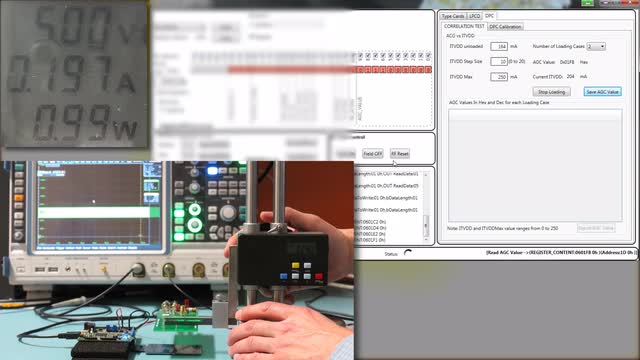

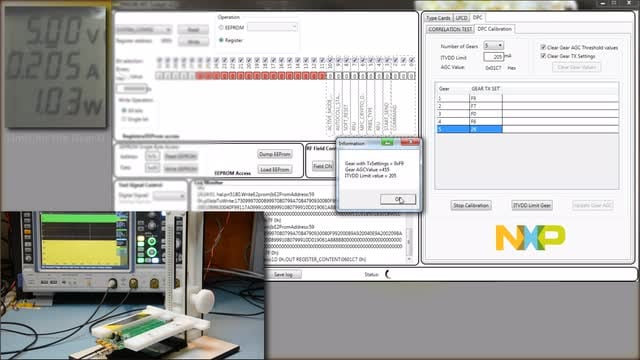

  • DPC configuration
  • Start and stop of test applications like EMVCo Loopback
  • AWC (Automatic Waveform Control)
  • Test Signal configuration
  • Secure Firmware Upgrade

Supported Devices

  • CLRC66303HN: CLRC663 plus Family: High-Performance NFC Frontends
  • PN5180: Full NFC Forum-Compliant Frontend IC
  • PN5190: NFC Frontend supporting challenging RF environment for payment, physical access control
  • PN7220: PN7220: High-Performance, One-Chip NFC Controller for EMVCo 3.1 and NFC Forum Operation
  • PN7462: NFC Cortex®-M0 All-in-One Microcontroller with Optional Contact Interface for Access Control
  • PN7642: Single-Chip Solution with High-Performance NFC Reader, Customizable MCU and Security Toolbox

System Requirements

Downloads

Quick reference to our software types.
Filters

3 downloads

  • Configuration Tools

    NFC Cockpit configuration tools for NFC IC's

    FLEXERARev v08.01.00Feb 20, 2024 15:20:001 KBNFC-COCKPIT-VCOM
    Download
  • Configuration Tools

    NFC Cockpit VCOM source code, secondary firmware application for PN7462AU and PN7642 Reader ICs

    FLEXERARev v05.06.00Feb 22, 2024 15:20:001 KBNFC-COCKPIT-V04
    Download
  • Configuration Tools

    NFC Cockpit VCOM source code, secondary firmware application for CLRC663, PN5180 and PN5190 Reader ICs

    FLEXERARev v03.10.00Feb 22, 2024 15:20:001 KBNFC-COCKPIT
    Download

Note: For better experience, software downloads are recommended on desktop.
