Evaluation Kit for 56F827 Processor

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

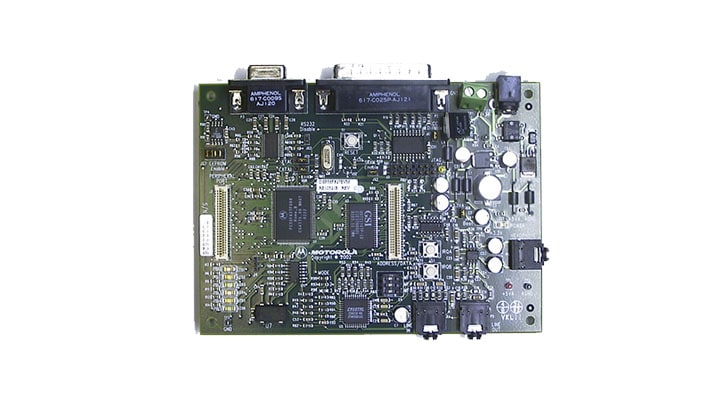

The 56F827EVM kit is a low-cost kit that contains everything you need to quickly evaluate the features and capabilities of the 56F827 Digital Signal Controller and tools. It also provides an efficient, cost-effective vehicle for hardware and software development. It can be used alone or in conjunction with Our broad range of modular motion control development hardware. The DSP56F827EVM Kit is targeted for use on PC-compatible systems running Windows 95, Windows 98, Windows 2000, Windows ME, Windows NT 4.0, and Windows XP.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800 DSC Core

DSP56F827: Digital Signal Controller

Features

DSP56F827EVM 16-bit +2.5V/+3.3V Digital Signal Processor operating at 80MHz
External fast static RAM (FSRAM) memory, configured as:

64K x 16-bit of program memory with 0 wait states at 70MHz
64K x 16-bit of data memory with 0 wait states at 70MHz

1Mbit Serial EEPROM
4.00MHz crystal oscillator for DSP frequency generation
Optional external oscillator frequency input connector
Joint Test Action Group (JTAG) port interface connector for an external debug Host Target Interface
On-board Parallel JTAG Host Target Interface, with a connector for a PC printer port cable
RS-232 interface for easy connection to a host processor
16-bit stereo codec interface
Stereo headphone interface
Codec sample rate selector
Peripheral Daughter Card Expansion Connector, to allow the user to connect his own SCI, SSI, SPI or GPIO compatible peripheral to the DSP
Memory Daughter Card Expansion Connector, to allow the user to connect his own memory or memory device to the DSP

Documentation

Quick reference to our documentation types.

5 documents

Compact List

56F827 - Fact Sheet[56F827FLASHFS]

PDFMay 30, 2005Rev 2
56F800, 56F8300/8100, 56F8000 and 56850 Series Hardware Development Tools[56800-EDEVFS]

PDFMay 30, 2005Rev 2
56F827EVM Kit Installation Guide[DSP56F827EVMKIG]

PDFOct 1, 2004Rev 1

Digital Signal Processors and Controllers, SG1004[SG1004Q22009]

PDFApr 17, 2009Rev 0

56F827 Evaluation Module Hardware User's Manual[DSP56F827EVMUM]Getting Started

PDFJul 30, 2005Rev 2

Design Resources

Design Files

Quick reference to our design files types.

1-5of 6 design files

Printed Circuit Boards and Schematics
Fabrication and Assembly GERBER files for the DSP56F827EVM board

ZIPRev 0Aug 30, 2005 00:00:00706.8 KBDSP56F827EVMFAG
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Fabrication and Assembly Drawings for the DSP56F827EVM board

ZIPRev 0Aug 30, 2005 00:00:00239.6 KBDSP56F827EVMFAD
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Assembly GERBER Files used to Assemble the DSP56F827EVM board

ZIPRev 0Aug 30, 2005 00:00:00359.1 KBDSP56F827EVMAFG
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
PADS PCB Layout Design file for the DSP56F827EVM board

ZIPRev 0Aug 30, 2005 00:00:00314.8 KBDSP56F827EVMLD
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Fabrication GERBER files used to create the DSP56F827EVM board

ZIPRev 0Aug 30, 2005 00:00:00715.0 KBDSP56F827EVMFG
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
OrCAD Schematic Design file for the DSP56F827EVM board

ZIPRev 0Aug 30, 2005 00:00:00170.5 KBDSP56F827EVMORCADSCH
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Show All

Software

Quick reference to our software types.

1-5 of 15 software files

Code Snippets
Triple DES Example Application for 56F82x

ZIPRev 0Sep 24, 2005 00:00:009.5 KB56F82XCE3DES
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
Common Tone Generation (CTG) Example Application for 56F82x

ZIPRev 0Sep 25, 2005 00:00:009.5 KB56F82XCECTG
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
DTMF Generation Example Application for 56F82x

ZIPRev 0Sep 25, 2005 00:00:009.5 KB56F82XCEDTMFG
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
G.165 Example Application for 56F82x

ZIPRev 0Sep 25, 2005 00:00:009.5 KB56F82XCEG165
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
VRLite-1 Example Application for 56F82x

ZIPRev 0Sep 24, 2005 00:00:009.9 KB56F82XCEVRL1
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
G.726 Example Application for 56F82x

ZIPRev 0Sep 25, 2005 00:00:009.3 KB56F82XCEG726
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
RSA Example Application for 56F82x

ZIPRev 0Sep 24, 2005 00:00:009.4 KB56F82XCERSA
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
Voice Activity Detection (VAD) Example Application for 56F82x

ZIPRev 0Sep 25, 2005 00:00:009.3 KB56F82XCEVAD
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
DTMF Detection Example Application for 56F82x

ZIPRev 0Sep 25, 2005 00:00:009.5 KB56F82XCEDTMFD
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
Peripheral Example Applications for 56800/E, supporting: ADC, Decoder, ESSI/SSI, EMI, Flash, GPIO, HPI, INTC, I2C, PLL, PWM, Timer, SCI/LIN, SIM, SPI, TOD, EEPROM, Terminal, Button, Codec, LED, Switch.

ZIPRev 0Sep 21, 2005 00:00:009.2 KB56800CEHW
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
V.42bis Example Application for 56F82x

ZIPRev 0Sep 24, 2005 00:00:009.3 KB56F82XCEV42
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Code Snippets
G.711 Example Application for 56F82x

ZIPRev 0Sep 25, 2005 00:00:009.2 KB56F82XCEG711
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Debugging and Visualization Tools
Real-Time Control and Debugging Tool

ZIPRev 0Oct 8, 2005 00:00:005.9 KBFREEMASTERRD
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Software Development Resources
CodeWarrior Flash Programming Tool for 56800/E

ZIPRev 0Oct 8, 2005 00:00:009.0 KB56800CWFP
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Software Development Resources
Flash Programming Tool for 56F80x and 56F82x

ZIPRev 0Oct 8, 2005 00:00:009.3 KB56F8XXFP
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Show All
