PFC + LLC Resonant Power Supply Development Kit

RDK01DB1562

Roll over image to zoom in

The TEA2016 is a digital configurable LLC and PFC combo controller for high-efficiency resonant power supplies. It includes both the LLC and PFC controller functionality. The TEA2016AAT comes in a low profile and narrow body-width SO16 package. During the power supply development, many operation and protection settings of the LLC and PFC controller can be adjusted by loading new settings into the device to meet specific application requirements.

Product Details

Supported Devices

Power Management

AC-DC Controllers with Integrated PFC

  • TEA2016: Digital LLC+PFC Combo Controller for Resonant Power Supply

Secondary Side Controllers

  • TEA1995T: GreenChip Dual Synchronous Rectifier (SR) Controller

Features

Distinctive features

  • Complete functionality of LLC and PFC controller in single small-size SO16 package
  • Integrated high-voltage start-up
  • Integrated drivers and high-voltage level shifter (LS)
  • High-side driver directly supplied from the low-side driver output (patent nr 82059363US01)
  • Accurate boost voltage regulation
  • Integrated X-capacitor discharge without additional external components
  • Power good function
  • Several parameters can easily be configured

Green features

  • Valley/zero voltage switching for minimum switching losses
  • Very high efficiency from low load to high load
  • Compliant with latest energy saving standards and directives (Energy Star, EuP)
  • Excellent no-load input power (< 75 mW for TEA2016AAT/TEA1995T combination)

Protection features

  • Independently configurable levels and timers
  • All protections can independently be set to latched, safe restart, or latched after several attempts to restart (Patent 82096505US01)
  • Supply undervoltage protection (UVP)
  • Overpower protection (OPP)
  • Internal and external overtemperature protection (OTP)
  • Capacitive mode regulation (CMR)
  • Accurate overvoltage protection (OVP)
  • Overcurrent protection (OCP)
  • Inrush current protection (ICP)
  • Brownin/brownout protection
  • Disable input

Buy Options

RDK01DB1562-Image

Click to expand

  • RDK01DB1562
    Active

  • PFC + LLC Resonant Power Supply Development Kit.

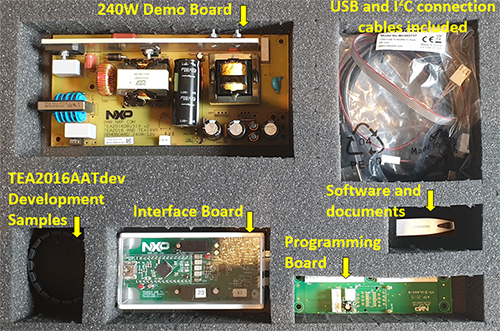

  • Kit contains:

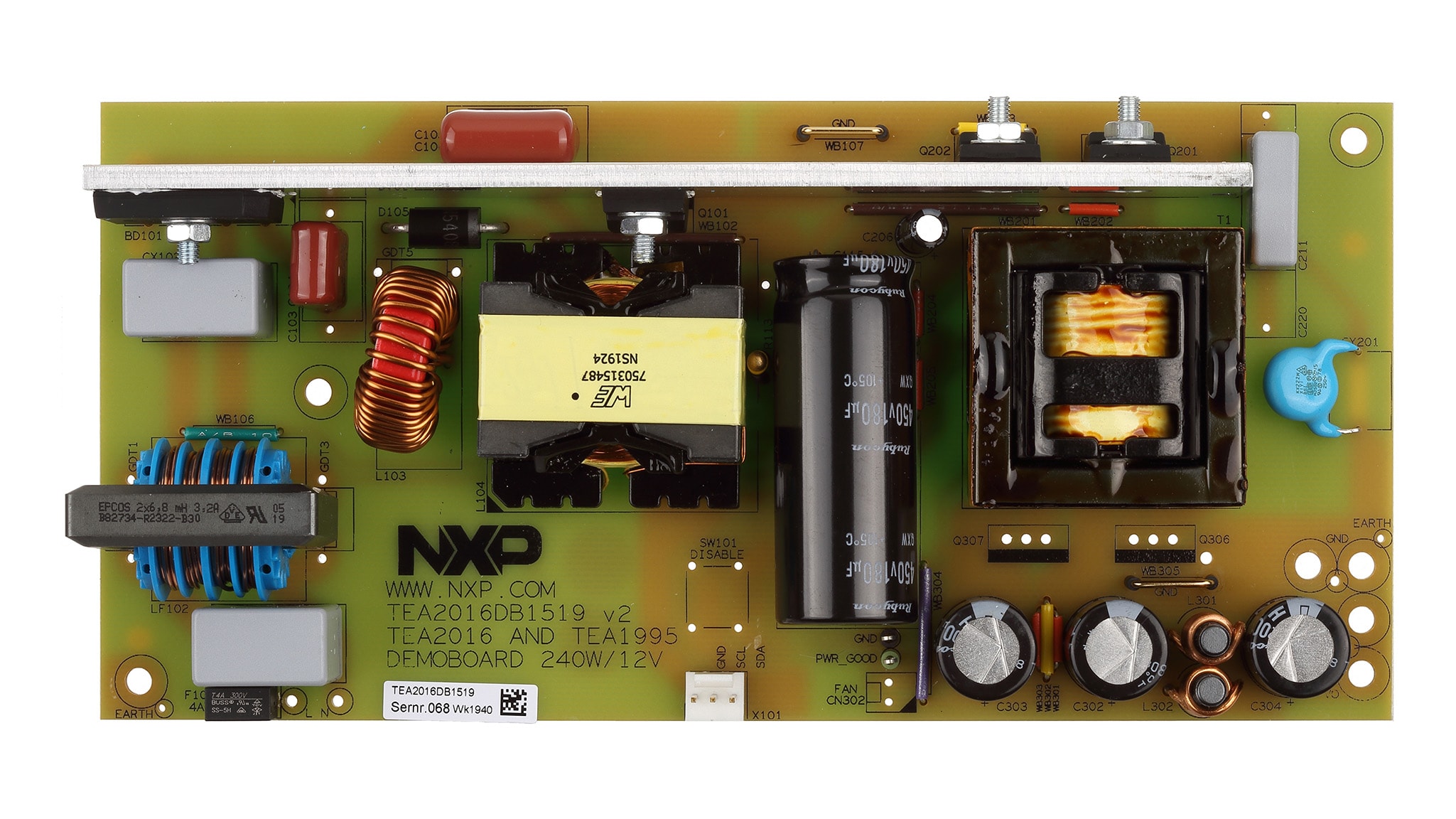

    • TEA2016DB1519v2 240 W 12 V 20 A demo board
    • TEA2016DB1514v2 USB-I²C interface board
    • TEA2016DB1561 or TEA20xx_socket_DB1586 programming board
    • TEA2016AATdev IC samples
    • USB, 3-pin and 6-pin connection cables
    • USB memory stick with Ringo software and documents
  • $499.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
