MC33696/ MC33596 Evaluation Board

MC33696EVB Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

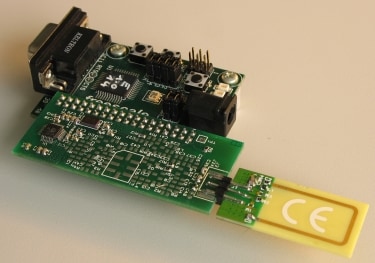

The MC33696/ MC33596 development board is designed to work in conjuntion with the MC9S08RG60 demo boards at a range of frequencies including 315 MHz, 433 MHz and 866 MHz



Description

Web Ref

Frequency

MC33696/MC33596 RF Module designed to work in conjunction with the MC908RG60 Demo BoardMC33696MOD315EV315 MHz
MC33696MOD434EV433.92 MHz
MC33696MOD868EV868.3 MHz
MC9S08RG60 Demonstrator BoardDEMO9S08RG60E

Note: MCU Demo Board should be ordered separately; it is not included in this kit.

Documentation

Quick reference to our documentation types.

Filters

1-10 of 11 documents

Compact List

Application Note (3)
Application Note Software (3)
Data Sheet (2)
Fact Sheet (2)
User Guide (1)
