DisplayPort Linear Redriver Evaluation Board for PTN3816

PTN3816EVM Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

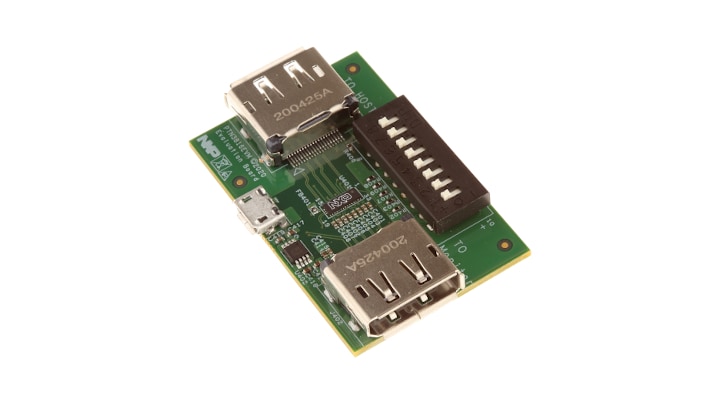

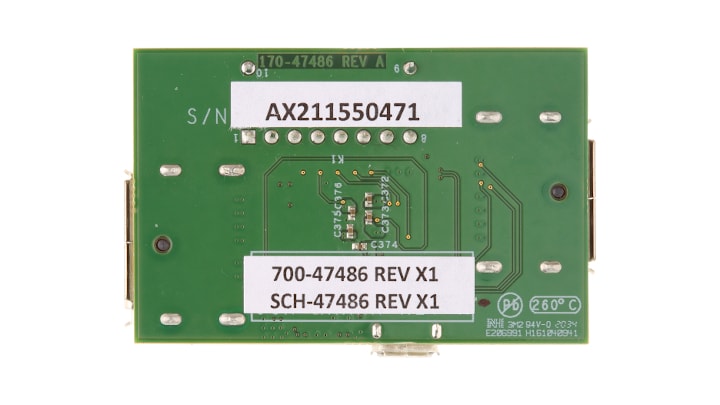

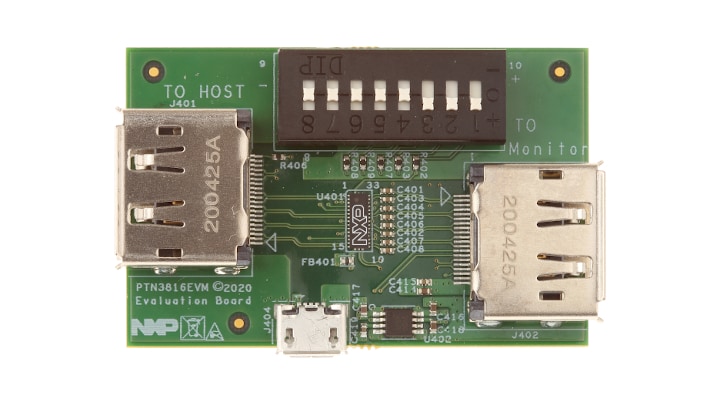

PTN3816EVM is the PTN3816 evaluation kit with 2 full-size DisplayPort connectors that can be connected to the downstream side (host/GPU) and the up stream side (monitor/docking station). There is no software required for this evaluation kit.

Product Details

Features

Features

  • Supporting up to UHBR20 link rates
  • DP AUX monitoring for link configuration and power management
  • Implements HPD for deep power saving
  • Configurable Rx equalizer gain
  • Configurable output swing linearity control
