2300-2400 MHz, 45 W Avg., 28 V Airfast® RF Power LDMOS Transistor

AFT23H201-24S No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

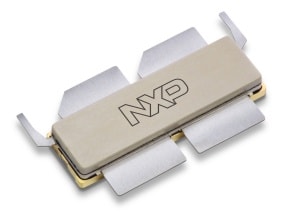

The AFT23H201-24SR6 45 W asymmetrical Doherty RF power LDMOS transistor is designed for cellular base station applications covering the frequency range of 2300 to 2400 MHz.

Product Details

Select a section:

RF Performance Table

2300 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQA = 500 mA, VGSB = 0.8 Vdc, Pout = 45 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
2300 MHz15.646.28.1–28.9
2350 MHz15.946.58.1–30.4
2400 MHz16.145.38.0–33.9
