The industry's first instrumentation cluster MCU with on-chip TFT display driver revamps graphic display capabilities in the low-end automotive dashboard realm.

Our MC9S12XHZ family drives up to six analog gauges, dot matrix displays, LCDs and high-resolution color TFT displays.

S12XHZ complements the S12HZ family's high integration of systems and features:

More memory
More CAN channels
More IIC channels
More stepper stall detectors (SSD)
Faster bus frequency
XGATE coprocessor

Data Sheet

Reference Manual

Product Details

Block Diagram

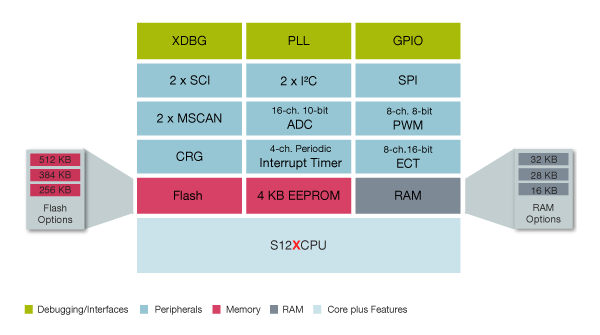

S12XHZ Microcontroller Block Diagram

Get diagram PDF

Features

Key Features

XGATE coprocessor capable for building virtual peripherals and boosting overall performance
TFT display software driver capability using the XGATE
Up to six gauges/motor high-current outputs

Additional Features

S12X CPU @ 40 MHz bus speed
XGATE
EEPROM
LCD driver 32 frontplanes and four backplanes
Pulse-width modulator motor controller with 24 high-current drivers
Six stepper stall detectors (SSD)
Low-power/low-noise Pierce oscillator
Non-multiplexed external bus interface (EBI)
Analog-to-digital converter (ADC) 16-channel 12-bit resolution and 3μs conversion time
Enhance capture timer (ECT)
Periodic interrupt timer (PIT)
CAN 2.0A/B modules (MSCAN)
Serial peripheral interface (SPI)
Serial communication interface (SCI)
Inter-IC module (IIC)
Background debug module (BDM) debugger (xDBG)
On-chip voltage regulator

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Receive the full breakdown. See the product footprint and more in the eCad file.

Hardware

Quick reference to our board types.

2 hardware offerings

Adapters, Cables, Sockets
MC9S12H AdaptersFeatured

MC9S12HADAPTERS
Evaluation and Development Boards
FlexRay Daughter Card (FRDC)
Active

MFR4310FRDC

Software

Quick reference to our software types.

5 software files

BSPs and Device Drivers
Graphical LCD Driver for MCUs/MPUsFeatured
Configuration Tools
Embedded Component: NXP^®.AN
Debugging and Visualization Tools
D-Bug12XZ

ZIPRev 6.0.0b19Jul 18, 2017 00:00:00931.8 KBD-BUG12XZV6FW
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Development IDEs and Build Tools
CodeWarrior^® Development Studio for HCS12(X) Microcontrollers (Classic IDE) v5.2
Software Development Resources
LFBDMPGMRS12FW

ZIPRev 3.0.0b14Oct 4, 2012 00:00:0011.1 MBLFBDMPGMRFW
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Note: For better experience, software downloads are recommended on desktop.

S12XHZ Scalable Instrument Clusters Microcontrollers (MCUs) with CAN

Product Details

Block Diagram

S12XHZ Microcontroller Block Diagram

Features

Key Features

Additional Features

Applications

Automotive

Buy/Parametrics

Documentation

Filter by

Application Note (7)

AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note[AN5233]

Introduction to the Stepper Stall Detector Module[AN3330]

Investigating XGATE Software Errors[AN3555]

S12HZ and S12XHZ Family Compatibility[AN3510]

AN3493, XGATE Library: Driving a TFT LCD Panel - Application Notes[AN3493]

AN3458, Debugging XGATE Code Debug Features of S12X(E) MCUs - Application Notes[AN3458]

AN3333, XGATE Library: Signal Gateway - Application Notes[AN3333]

Application Note Software (3)

Software for AN3493[AN3493SW]

AN3333 Application Note Software package[AN3333SW]

Introduction to the Stepper Stall Detector Module - Software[AN3330SW]

Data Sheet (1)

MC9S12XHZ512 - Data Sheet[MC9S12XHZ512]Featured

Errata (2)

MSE9S12XHZ512_0M80F Mask Set Errata[MSE9S12XHZ512_0M80F]

MSE9S12XHZ512_1M80F Mask Set Errata[MSE9S12XHZ512_1M80F]

Fact Sheet (1)

9S12XHZ Family Single chip solution for instrument cluster - Fact Sheet[MC9S12XHZ512FS]Featured

Product Brief (1)

MC9S12XHZ-Family product brief[MC9S12XHZ512PB]Featured

Product Change Notice (1)

0.25um ATMC and TSMCFAB3/11 KLM QFP Copper Wire and Leadframe Flag Conversion Qualification[PCN16253]

Reference Manual (1)

S12XCPUV1 - Reference Manual[S12XCPUV1]Featured

Selector Guide (1)

S12X Daughter Card Selector Guide[SGS12XDTRCRDFLYR]

Technical Notes (1)

MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin[EB793]
