32-Bit Microprocessor
The MPC5125, a cost and power consumption optimized, automotive, industrial networking, and human-machine interface (HMI) solution. It helps reduce your development time, provides more communication peripherals at a competitive price and delivers ultra-low power without sacrificing performance.
The MPC5125 is a member of the mobileGT family of processors. NXP® is working closely with mobileGT alliance member companies to provide widespread firmware and software driver support. This includes support for popular real-time operating systems from Green Hills, QNX and Wind River, as well as open-source Linux® solutions.
Product Details

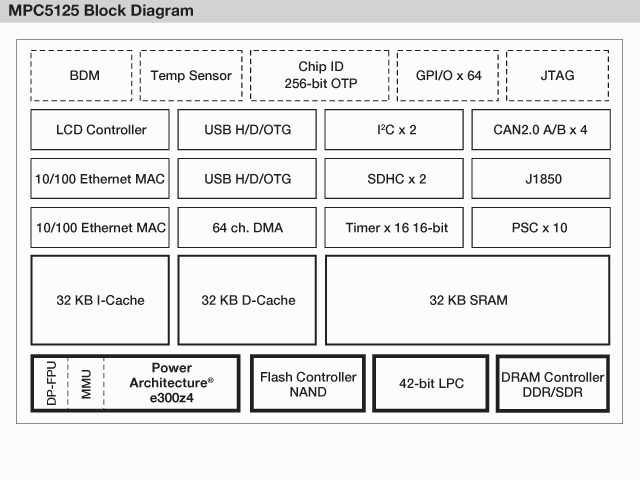

Block Diagram
Features
- e300c4 Power Architecture® core
- Display interface supporting WXGA/720p, 24-bit color
- Dual 10/100 Ethernet media access controller (MAC)
- Dual USB 2.0 On-the-Go (OTG) controller
- Four CAN 2.0A/B modules
- 800 MIPS of performance at less than 1 watt
- Complimentary MQX™ software solutions
- Complimentary Linux® BSP
- Chip ID and field programmable OTP
- Dual SD/SDIO expansion slots
- The MPC5125YVN400 is included in NXP ®.s product longevity program, with assured supply for a minimum of 15 years after launch
