±2g/±4g/±8g, Low g, 14-bit Digital Accelerometer

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

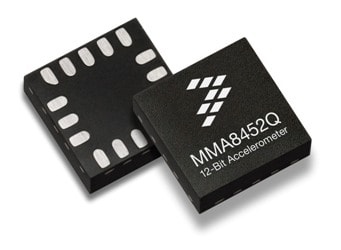

Roll over image to zoom in

This product is in “End of Life” status, we recommend FXLS8971CF or FXLS8974CF as a replacement. In cases where MMA845xQ is absolutely required, customers may reach out to Rochester electronics to check available stock.

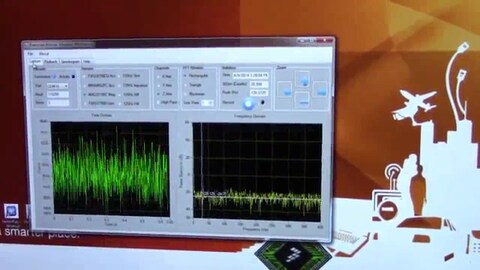

The NXP® MMA8451Q is a low-power, three-axis capacitive micromachined accelerometer with 14 bits of resolution, featuring:

Embedded functions with flexible user-programmable options, configurable to two interrupt pins
Embedded interrupt functions for overall power savings relieving the host processor from continuously polling data
Access to both low-pass filtered data as well as high-pass filtered data, which minimizes the data analysis required for jolt detection and faster transitions
Inertial wake-up interrupt signals from any combination of the configurable embedded functions allowing the MMA8451Q to monitor events and remain in a low-power mode during periods of inactivity

Data Sheet

Application Notes

Product Details

Block Diagram

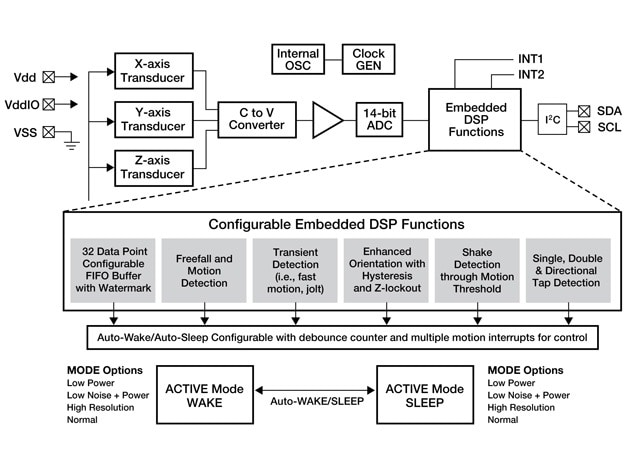

MMA8452Q Acceleration Sensor Block Diagram

Get diagram PDF

Features

Key Features

1.95 to a 3.6 V supply voltage
1.6 to 3.6 V interface voltage
±2g/±4g/±8g dynamically selectable full-scale
Output data rates (ODR) from 1.56 Hz to 800 Hz
99 μg/√Hz noise
14-bit and 8-bit digital output
I²C digital output interface (operates to 2.25 MHz with 4.7 kΩ pull-ups)
Two programmable interrupt pins for seven interrupt sources
Orientation (portrait/landscape) detection with programmable hysteresis
Automatic ODR change for auto-wake and return to sleep
32 sample FIFO
High pass filter data available per sample and through the FIFO
Self-test
RoHS compliant
Current consumption: 6 μA–165 μA

Three Embedded Channels of Motion Detection

Freefall or motion detection: one channel
Pulse detection: one channel
Jolt detection: one channel

Product Longevity Program

This product is included in the NXP Product Longevity program with assured supply for a minimum of 10 years after launch

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

2 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
NXP® E-Compass Software

Download Options
Printed Circuit Boards and Schematics
TWRPI-MMA845xQ Schematic

PDFRev BMay 17, 2013 00:00:0063.4 KBSCH-27111

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 8 hardware offerings

Evaluation and Development Boards
Tower Plug-In Carrier Module
Preproduction

TWR-TWRPI-BD
Evaluation and Development Boards

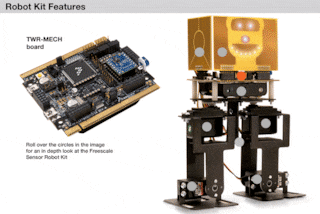

NXP Mechatronics Robot
Active

FSLBOT
Evaluation and Development Boards

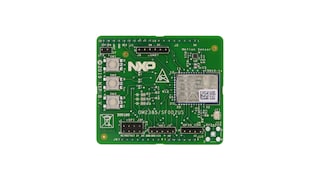

SIGFOX Development Kit
Active

OM2385-SF002
Evaluation and Development Boards
Freedom Development Platform for the Kinetis^® KL02 Family
Active

FRDM-KL02Z
Evaluation and Development Boards
Kinetis^® K64 MCU Tower System Module
Active

TWR-K64F120M
Evaluation and Development Boards
MPC574xB/C/G Body, Gateway, and Networking Evaluation System
Active

MPC574XG-MB
Evaluation and Development Boards
Kinetis^® K80 MCU Tower^® System Module
Active

TWR-K80F150M
Reference Design

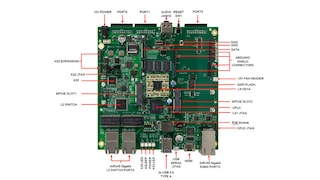

LS1021A-IoT Gateway Reference Design
