S08AC Demonstration Board

DEMO9S08AC60E Active

Roll over image to zoom in

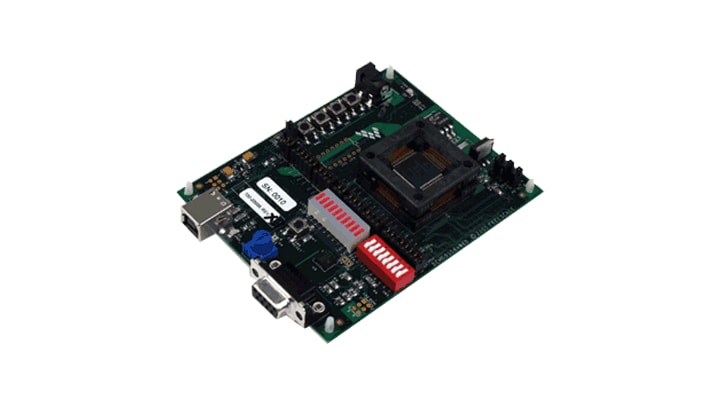

The DEMO9S08AC60 is a demonstration board for the NXP® S08AC MCU family..

  • Development of application code is quick and easy with the integrated USB-to-BDM interface, CodeWarrior® Development Studio and software examples
  • A 40-pin connector allows connecting the DEMO9S08AC60 board to an expanded evaluation environment
  • Other features like the 10 LED, 8 DIP switches, NXP XYZ-axis low g acceleration sensor, and ZIF socket set makes it an ideal design platform for the S08AC MCUs

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08AC: 8-bit Flexis® AC128/96/60/48/32 MCUs

Features

Microcontroller

  • MC9S08AC60 MCU

Connectivity

  • On-board RS-232 serial port
  • All I/O pins can be disconnected from demo board for alternate use
  • Power and communication through the integrated USB-BDM cable
  • Socketed 64-pin QFP package

Power Management

  • External power jack for optional DC power supply (+7 to +12 VDC)

Sensors

  • NXP® MMA6260Q Accelerometer

Size

  • 4.5" x 3.5" board size

Expansion Port

  • 40-Pin expansion connector

User Components

  • Potentiometer connected to the ADC
  • On-board visible light sensor
  • Main reset switch
  • Eight port rocker switch connected to I/O port
  • Ten LED light bar with 8 connected to I/O port (2 user assignable)
  • Four push-button user switches
