K Series Hydraulic/Pneumatic Valve Controller System

VALVE-CONTROLLER-SYSTEM

Roll over image to zoom in

This valve controller system uses the SB0800 octal valve controller IC with an MCU and two power MOSFETs. The system can drive proportional and digital valves, as well as the system pump. Monitoring and protection features protect the system from hazardous events such as short circuit, over current or voltage and other abnormal conditions.

Block Diagram

Hydraulic/Pneumatic Valves

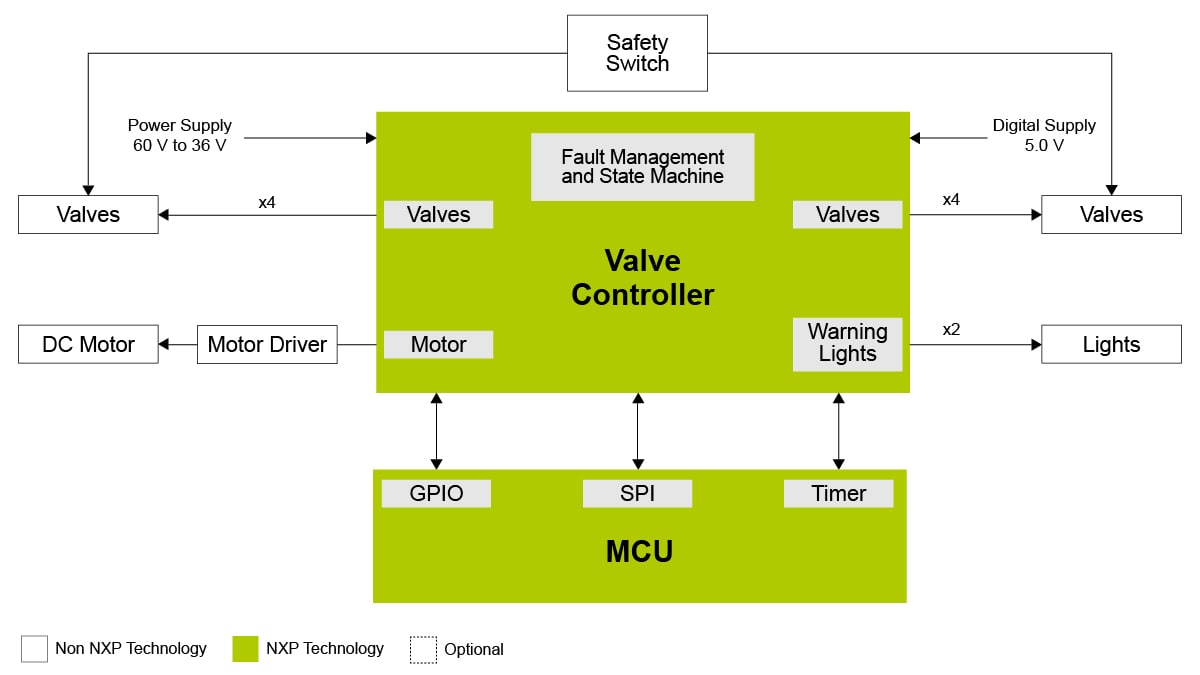

Hydraulic/Pneumatic Valves Controller System - Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

K2x / KS2x USB

  • K20_72: Kinetis® K20-72 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

KL Series Arm Cortex-M0+

  • KL4x: Kinetis® KL4x-48 MHz, USB, Segment LCD, Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

NXP Products

  • Scalable valve controller portfolio from 2 to 12 valves with daisy-chain capability
  • SB08000: 8 valves
  • SB04010 and SB0420: 4 valves
  • SB0421: 2 valves
  • SB1200: 12 valves

Key Features

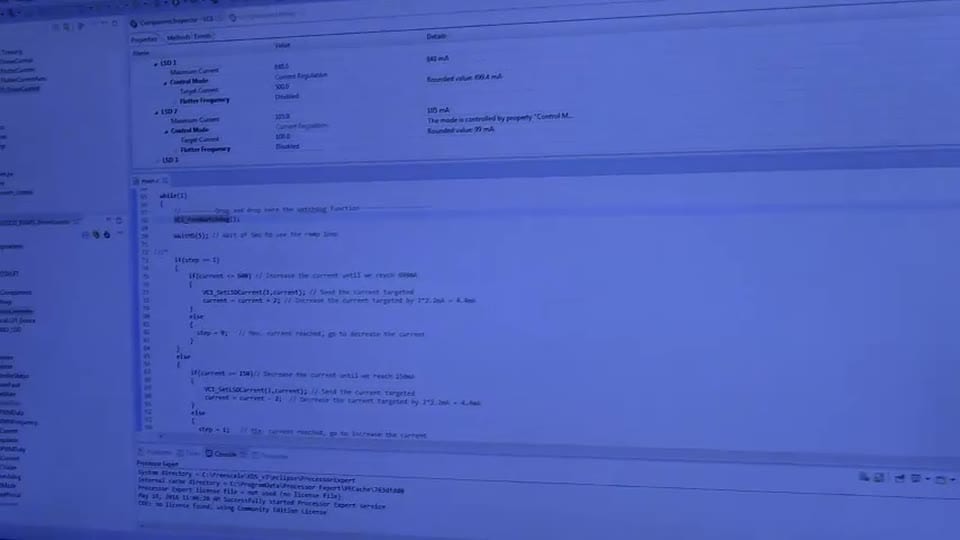

  • Intuitive system set-up and code generation with Processor Expert tool
  • Freemaster GUI available for real-time control and monitoring
  • Flutter frequency implemented to prevent valve friction
  • SW supports all Kinetis® MCU with Processor Expert or new Kinetis SDK2.0
  • Integrated low side Power MOSFET drivers
  • Integrated monitoring and safety state machine
  • 5A drivers, 5kHz PWM, 2% accuracy
  • High thermal efficiency

Safety

  • Automatic power shut down upon general system fault
  • Individual valve electric and temperature monitoring with flag
  • Secured SPI communication with watchdog and challenger
