TEA2093 Synchronous Rectification Evaluation Board

TEA2093DB2202

Roll over image to zoom in

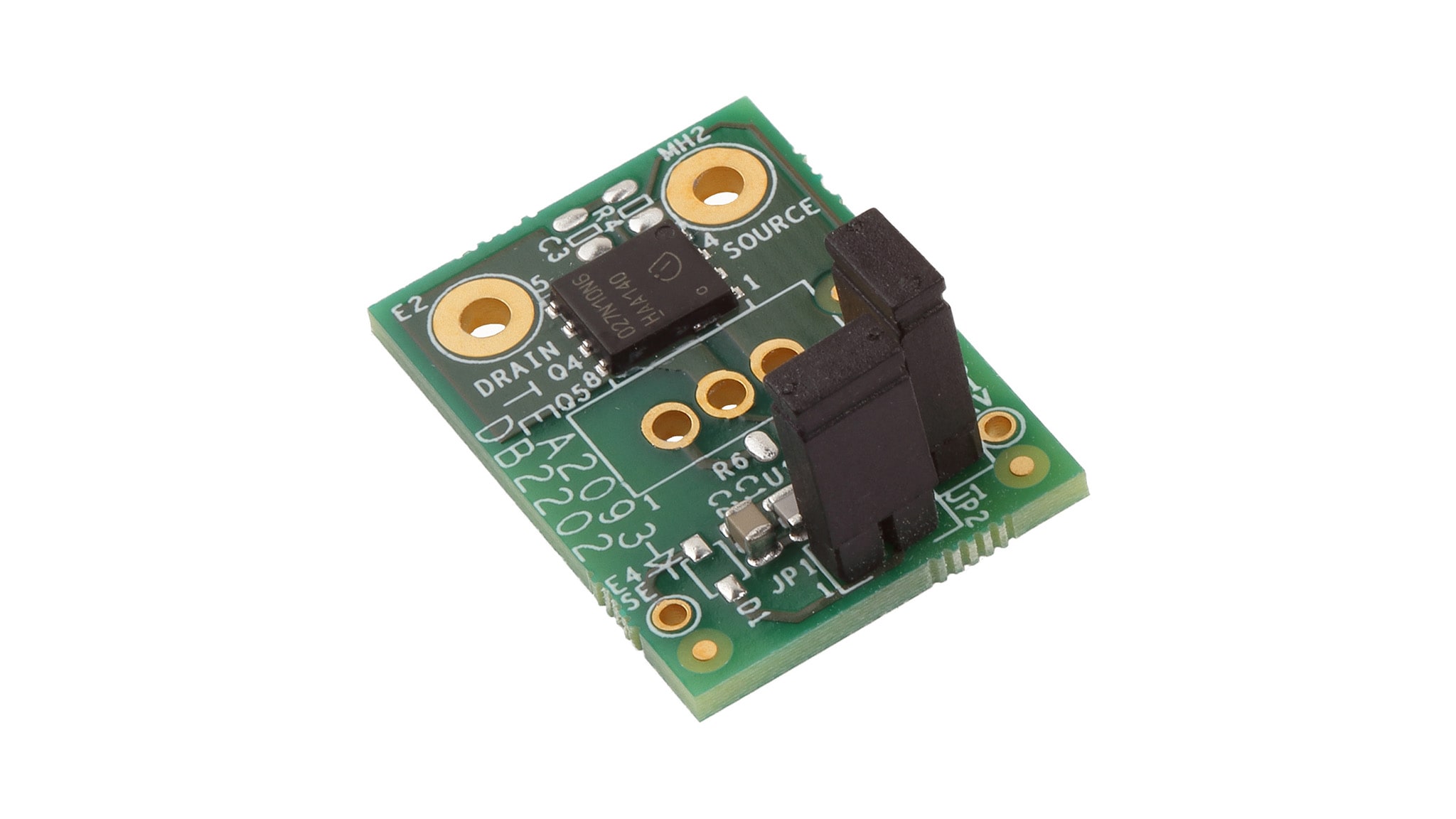

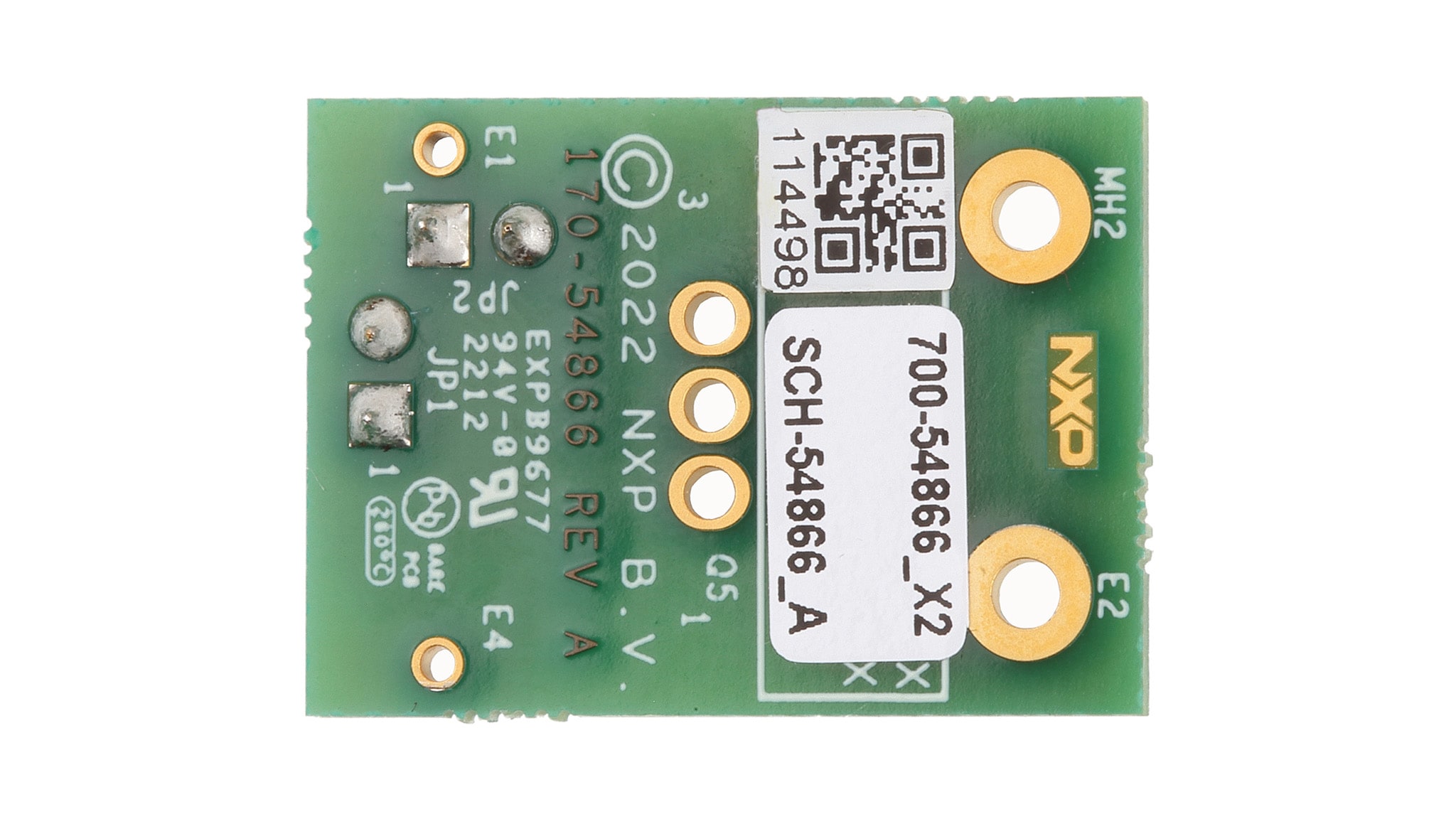

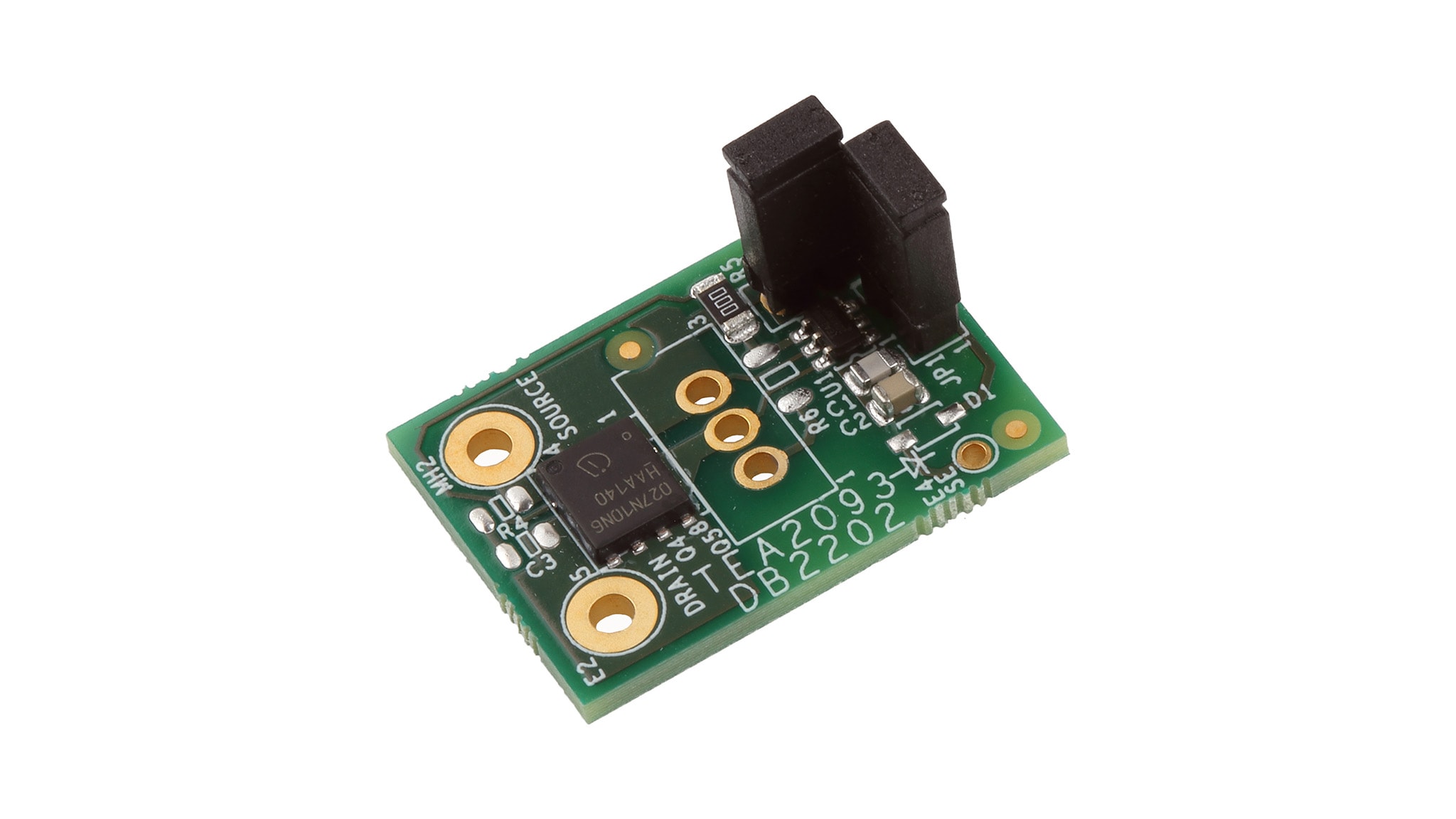

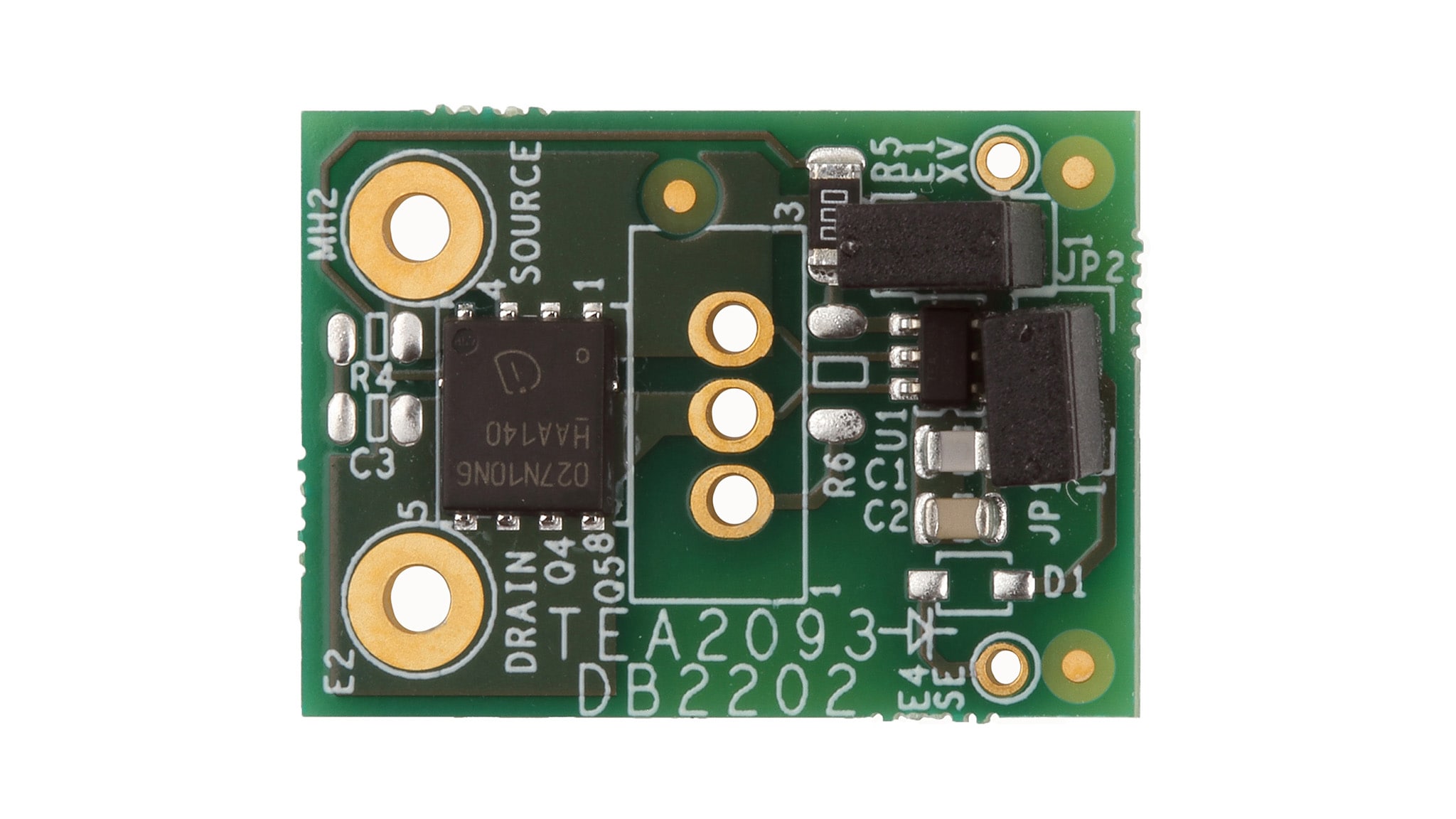

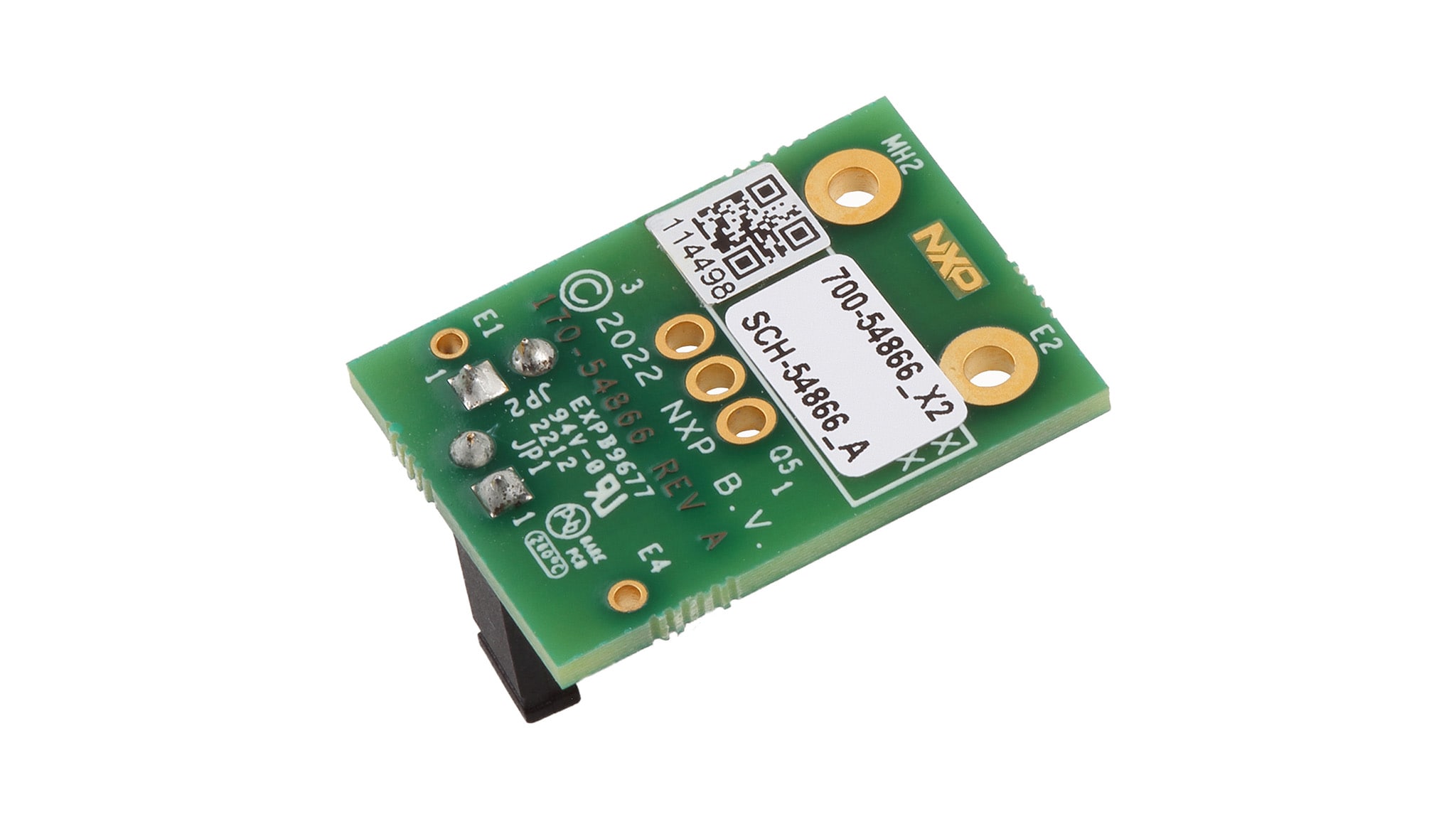

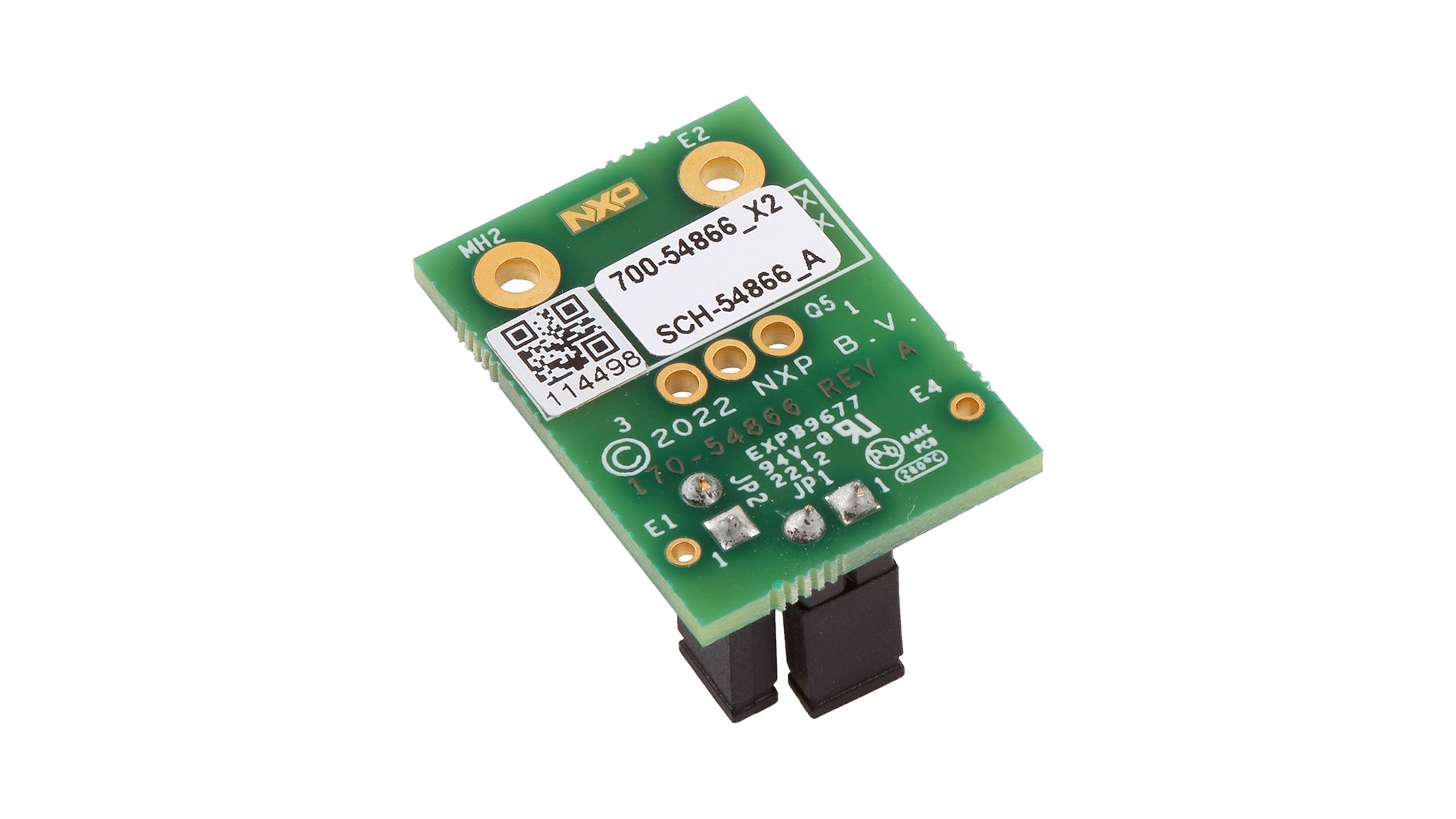

The TEA2093DB2202 is an add-on evaluation board enabled by the TEA2093TS synchronous rectification controller in a TSOP-6 package. The TEA2093TS controller includes an adaptive gate drive for maximum efficiency at any load.

The TEA2093DB2202 add-on evaluation board also contains a 100 V / 2.7 mΩ MOSFET and therefore enables easy replacement of the secondary side power diode in an existing power supply.

Product Details

Supported Devices

Power Management

Secondary Side Controllers

  • TEA2093: GreenChip Synchronous Rectifier Controller

Features

Key Features

  • Easy replacement of secondary-side diode rectifier
  • A 100 V/2.7 mΩ MOSFET is incorporated
  • Self-supplying for low-side rectification with low-output voltage (CC mode)
  • Self-supplying for high-side rectification without the use of an auxiliary winding
  • Operates with standard-level and logic-level SR MOSFETs

Buy Options

TEA2093DB2202-Image

Click to expand

  • TEA2093DB2202
    Active

  • TEA2093 Synchronous Rectification Evaluation Board.

  • Kit contains

    • TEA2093DB2202 add-on evaluation board
  • $144.90 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 30
    • Shipping: Normally ships 1-2 business days
ADD TO CART
