MC33774ATP Evaluation Board with Isolated Daisy Chain

RD33774PDSTEVB Active

Roll over image to zoom in

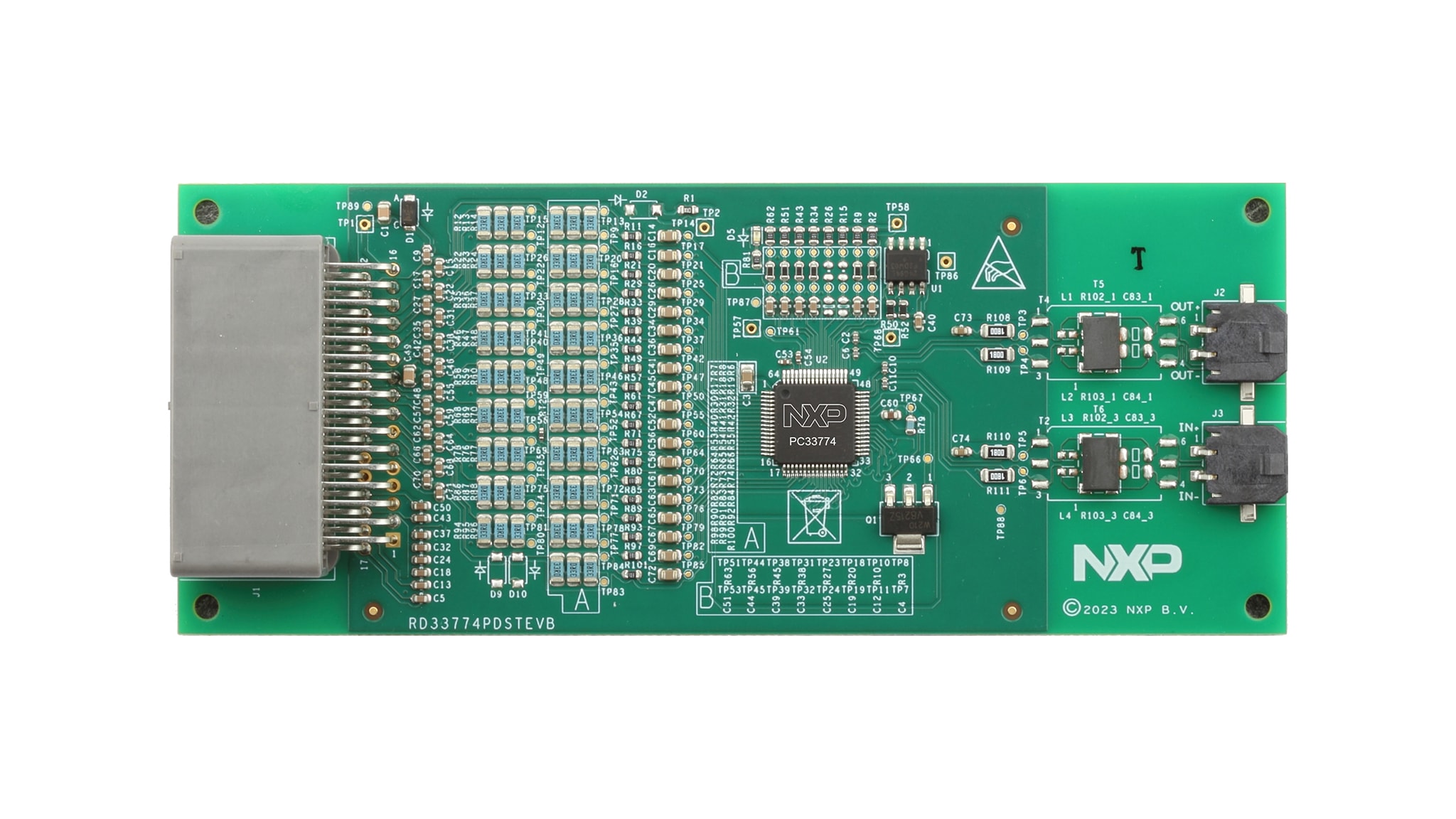

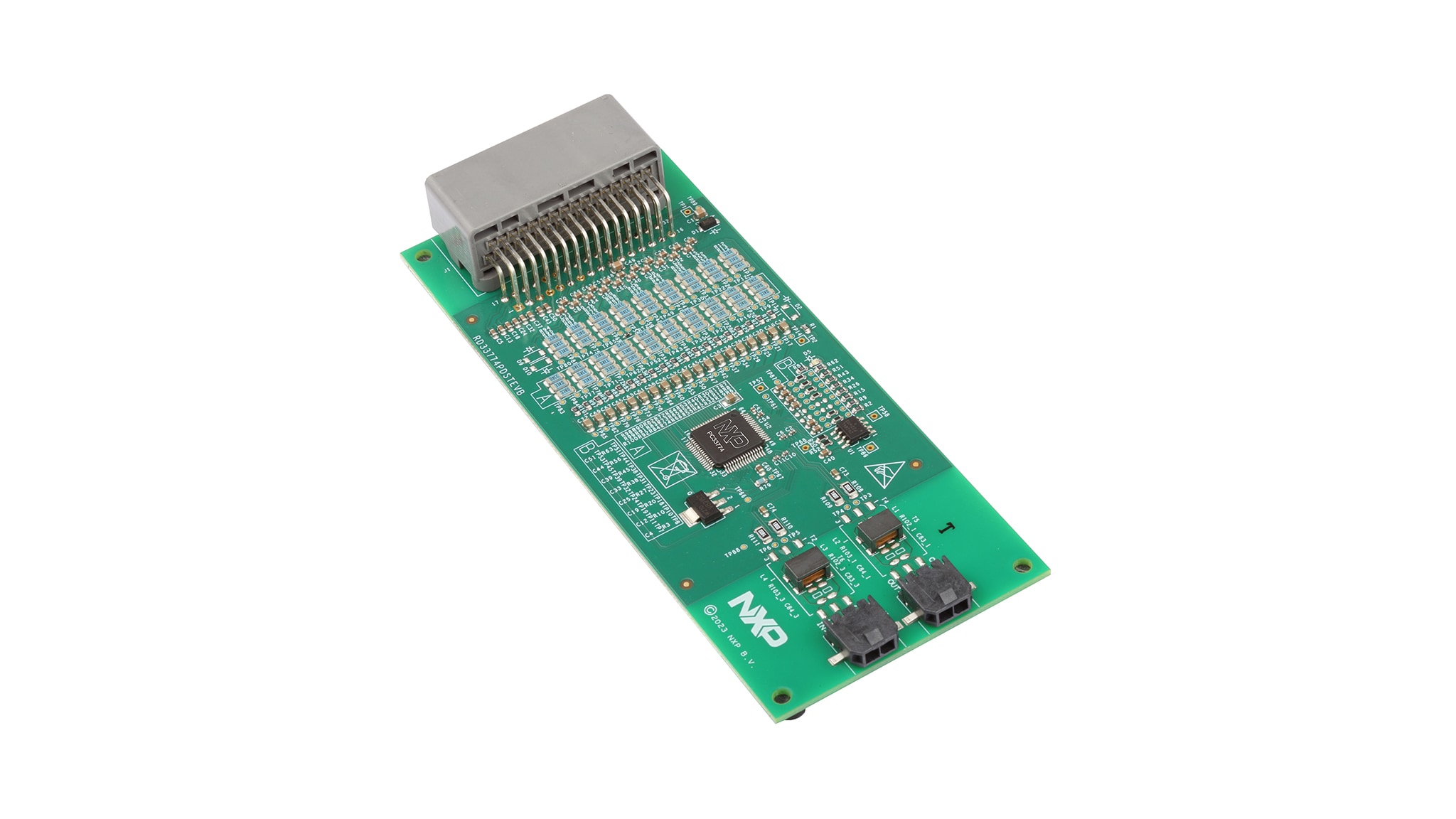

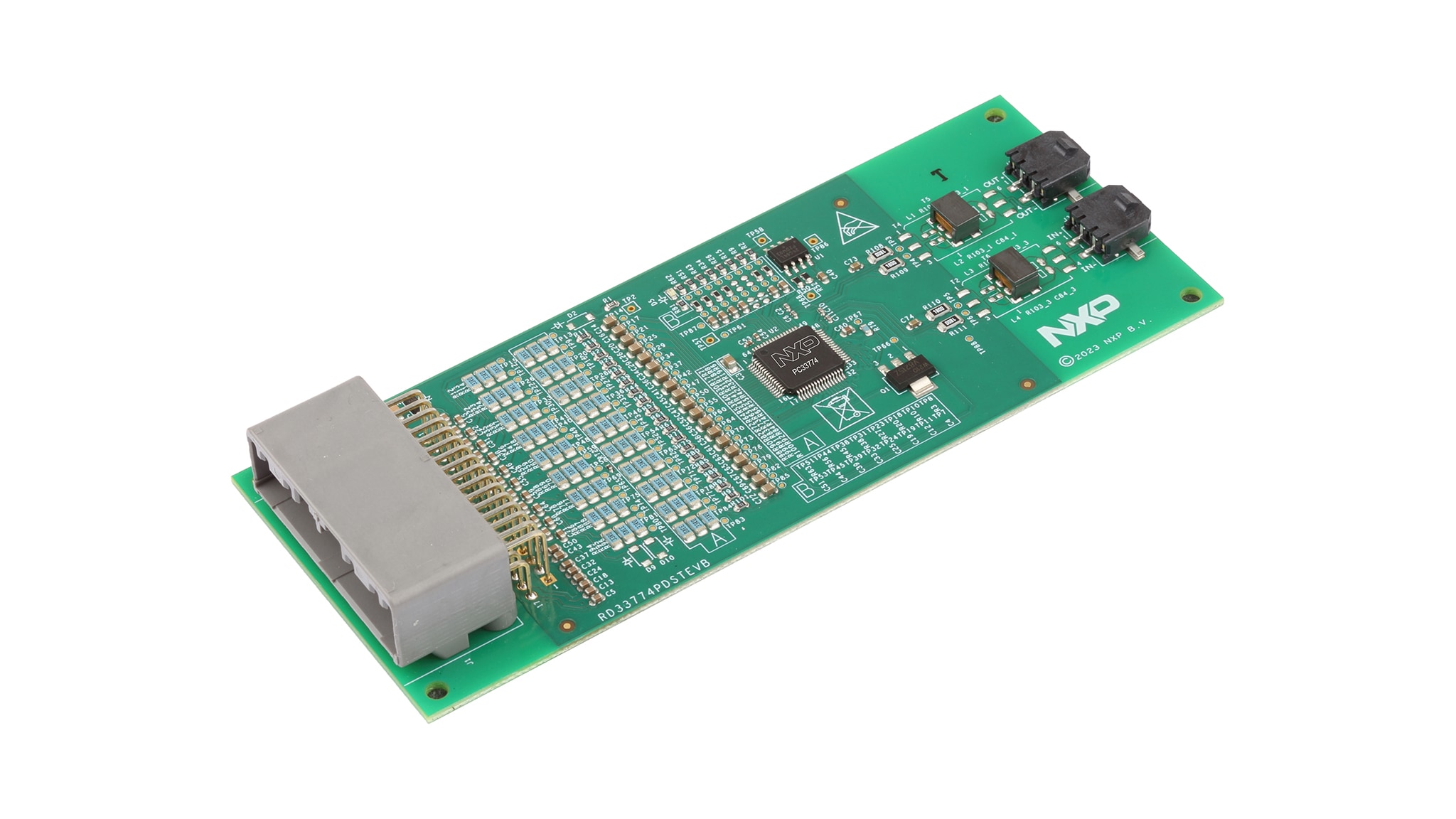

The RD33774PDSTEVB is a distributed cell monitoring unit (CMU) reference design with electrical transport protocol link (ETPL) communication. It is ideal for rapid prototyping of a high-voltage battery management system (HVBMS) hardware and software. This board contains one MC33774 analog front end (AFE). Several units of this board can be connected to the same daisy chain.

Block Diagram

MC33774ATP Evaluation Board with Isolated ETPL Daisy Chain Communication

RD33774ADSTEVB Block Diagram
Get diagram PDF

Supported Devices

Power Management

Battery Cell Controllers

  • MC33774: 18 Channel Li-Ion Battery Cell Controller IC ASIL D

Features

Voltage Measurement

  • 1 MC33774ATP battery cell controllers (BCCs) for up to 18 cells, extendable by adding more CMUs to the daisy chain
  • Life-time guaranteed high accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurement

  • 12 analog inputs for NTC temperature sensors

Cell Balancing

  • Integrated passive cell balancing up to 200 mA peak

Communication

  • Isolated electrical transport protocol link (ETPL) communication between CMU and BMU

Cost Reduction

  • Optimized BOM using capacitive isolation on and off board

Buy Options

RD33774PDSTEVB-Image

Click to expand

  • RD33774PDSTEVB
    Active

  • MC33774ATP Evaluation Board with Isolated Daisy Chain.

  • Kit contains:

    • 1 RD33774PDSTEVB board
    • 1 Cell Terminal (CT) cable
    • 1 ETPL cable
  • $125.60 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • Kit contains:

    • 1 ETPL cable, 30 cm-long
  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • Kit contains:

    • 1 ETPL cable, 50 cm-long
  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-18CTCABLE30-Image

Click to expand

  • BATT-18CTCABLE30
    Active

  • Cell Terminal (CT) cable, 18 cells, 30 cm-long.

  • Kit contains:

    • 1 Cell Terminal (CT) cable, 30 cm-long
    • 18 cells
  • $25.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
