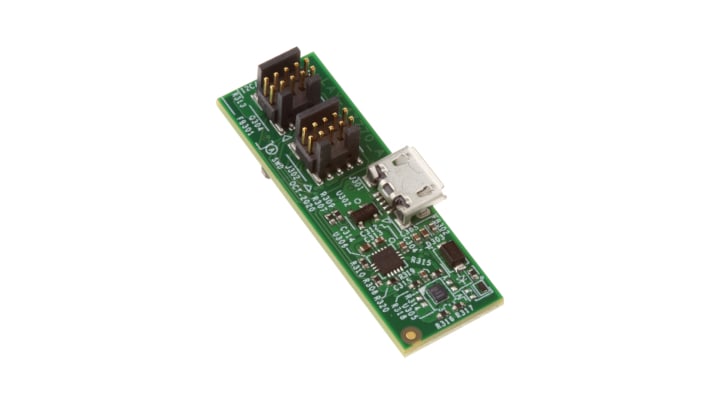

PTN38007 Evaluation Board

PTN38007-EVM No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

This evaluation board can be use to evaluate PTN38007 redriving USB 3.2, DisplayPort 2.0, Thunderbolt 3 and USB 4 signals over longer channel length, on either motherboard side, or on the device side. It can also be used to evaluate signal driving capability on an active cable.

Product Details

Features

General Features

  • Support USB3.2, DisplayPort 2.0, Thunderbolt 3 and USB 4 interfaces
  • Small form factor
  • Low-power consumption
