PTN38003A Evaluation Board

PTN38003A-EVM Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

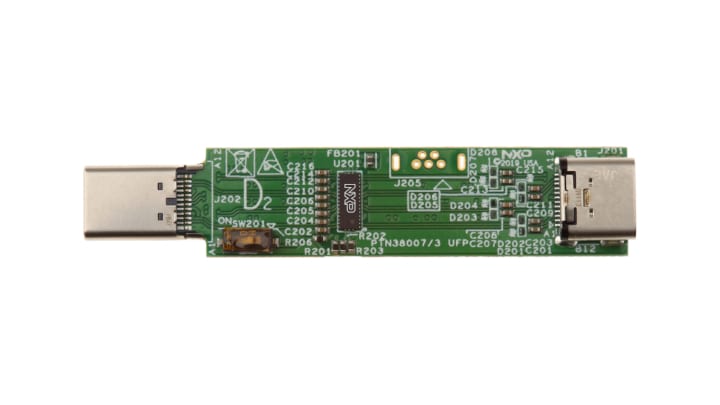

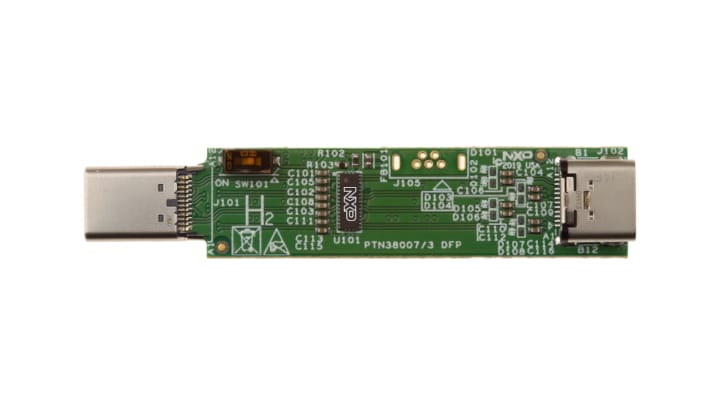

This evaluation board can be use to evaluate PTN38003A redriving USB 3.2 and DisplayPort 1.4 signals over longer channel length, on either motherboard side or on the device side. It optionally can be use to evaluate signal driving capability on an active cable.

Please review the UM11595 User Manual (chapter 4 - Getting to know to the hardware) for the two DFP and UFP options.

Product Details

Features

General Features

  • Support USB 3.2 / DisplayPort 1.4 / Thunderbolt 3 / USB4 Interfaces
  • Small form factor
  • Low-power consumption
