LPCXpresso board for LPC11U37H

OM13074 Active

Roll over image to zoom in

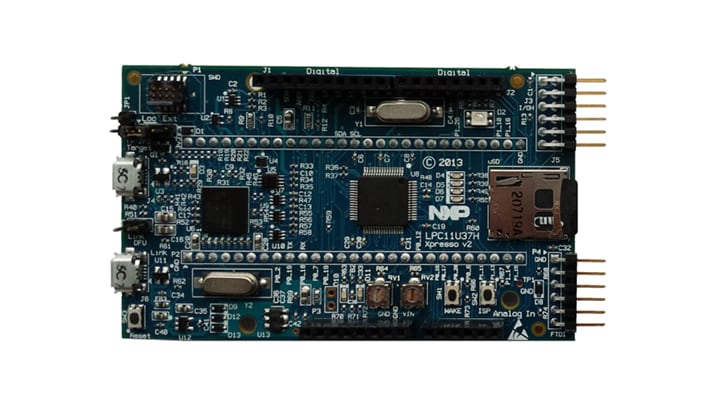

The LPCXpresso LPC11U37H board is an extended variant of the standard LPCXpresso V2 board, designed to allow evaluation of the LPC11U37HFBD64 and make it as easy as possible to get started with your project.

LPCXpresso is a low-cost development platform available from NXP®, supporting NXP's Arm-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached JTAG debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.

Product Details

Supported Devices

Processors and Microcontrollers

LPC1100 Arm Cortex-M0+/M0

  • LPC11U00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0+ and Cortex®-M0 Cores

Features

Microcontroller

  • LPC11Uxx MCU Family

Connectivity

  • Connector for target MCU's USB device peripheral
  • MCU pins available on standard LPCXpresso/mbed expansion connector (board bottom side)
  • Micro SD card slot
  • UART connector, for use with 6-pin FTDI cable (TTL-232R-3V3) compatible (cable not included)

Debug

  • On-board LPC-Link2-based debug probe, based on an NXP® LPC4322 MCU; compatible with LPCXpresso IDE out-of-the-box, and with other tool-chains via optional Arm CMSIS-DAP and SEGGER J-Link firmware download
  • Debug connector to allow debug of target MCU via an external probe
  • Can be configured to act as a standalone probe to allowing debugging of an external board

Support

  • Arduino® connectors compatible with the "Arduino® UNO" platform (board top side)

User Components

  • Tri-color LED
  • ISP and WAKE buttons

Buy Options

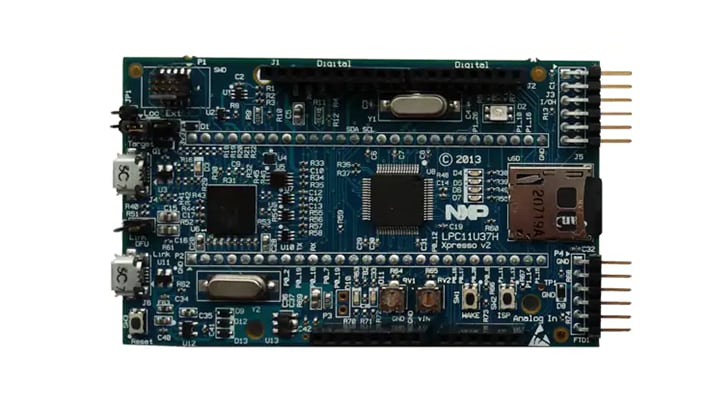

OM13074-Image

Click to expand

  • OM13074
    Active

  • LPCXpresso board (V2) for LPC11U37H.

    • LPCXpresso LPC11U37H board
  • $70.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 29
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
